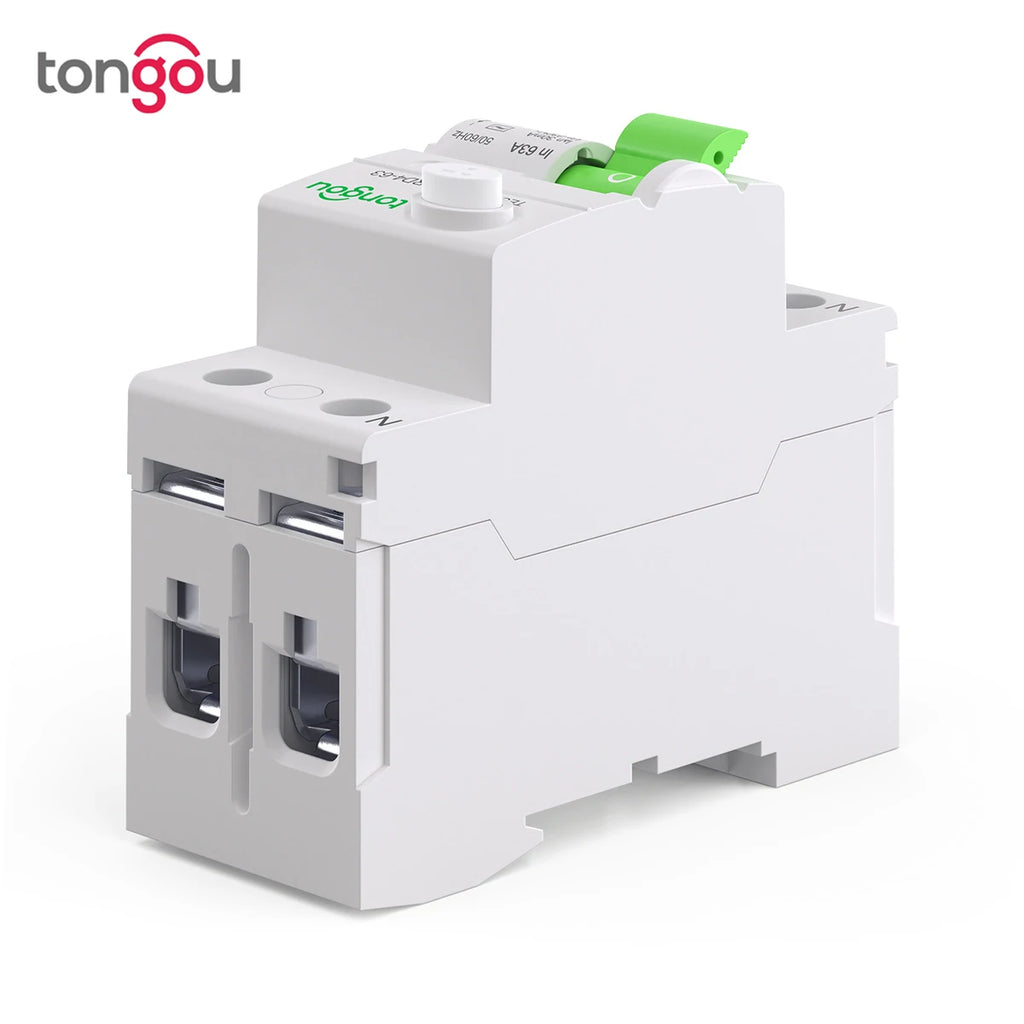

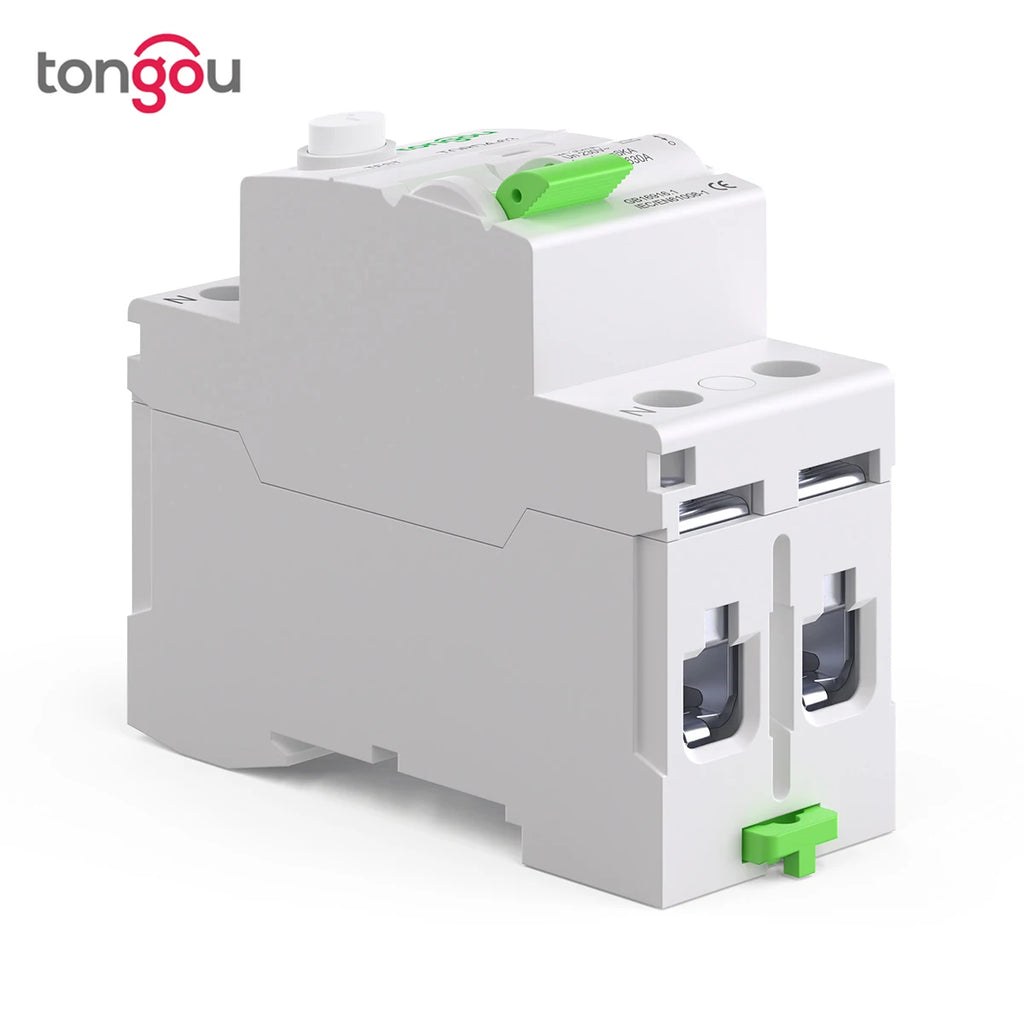

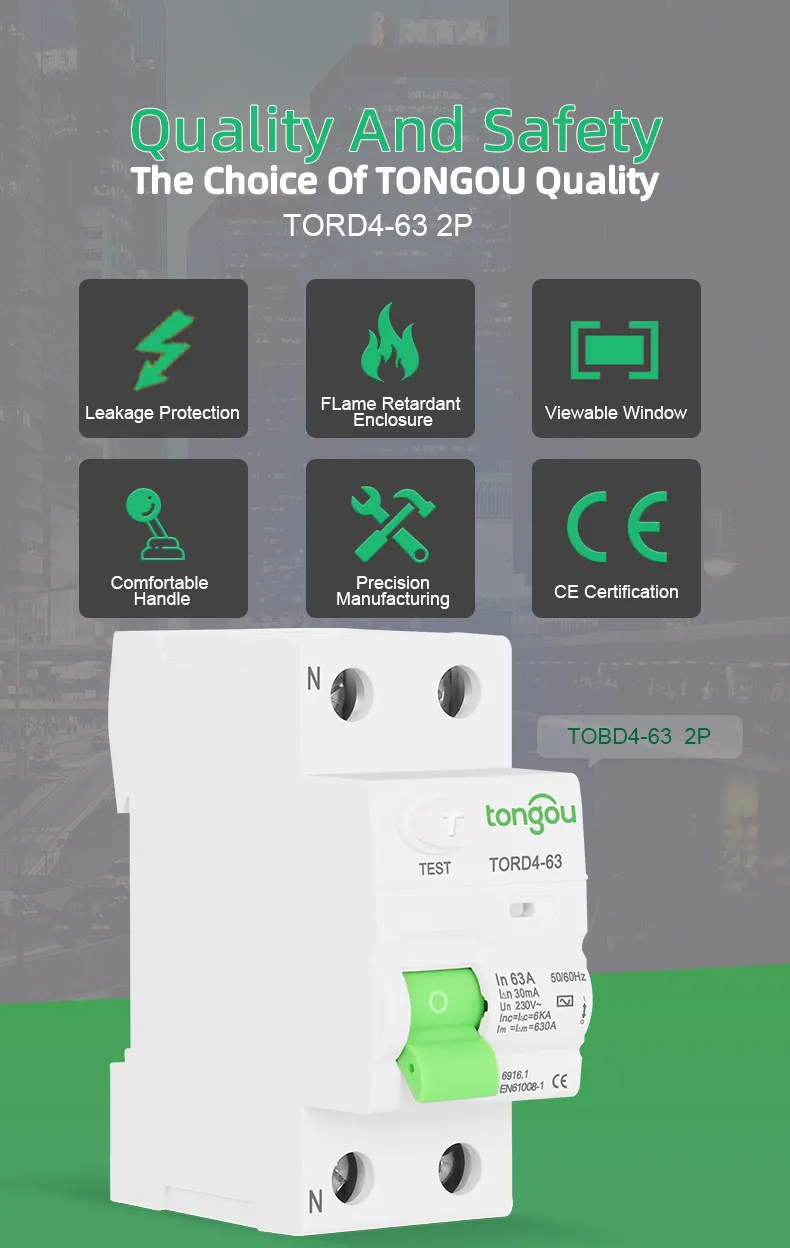

AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 16A 25A 40A 63A RCD 30mA TONGOU
AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 16A 25A 40A 63A RCD 30mA TONGOU
SPECIFICATIONS
Brand Name: TONGOU
Breaking capacity: 6KA

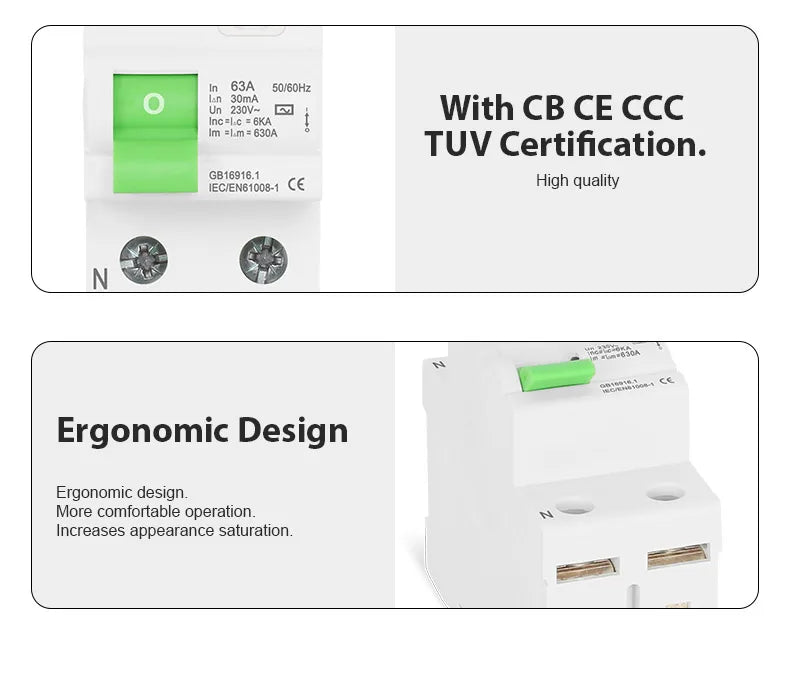

Certification: CE,CE CB TUV
Choice: yes
Electro-mechanical endurance: More than 20000 cycles
High-concerned chemical: None
Model: 30 - 300mA is Magnetic type, 10mA is Electronic type
Model Number: RD4-63
Origin: Mainland China
Rated current: 16A
Rated frequency: 50/60Hz
Rated making and breaking capacity: 630A
Rated voltage: 230V AC
Residual Current characteristic: AC
Standard: IEC/EN 61008-1
Type: Earth Leakage
is_customized: Yes

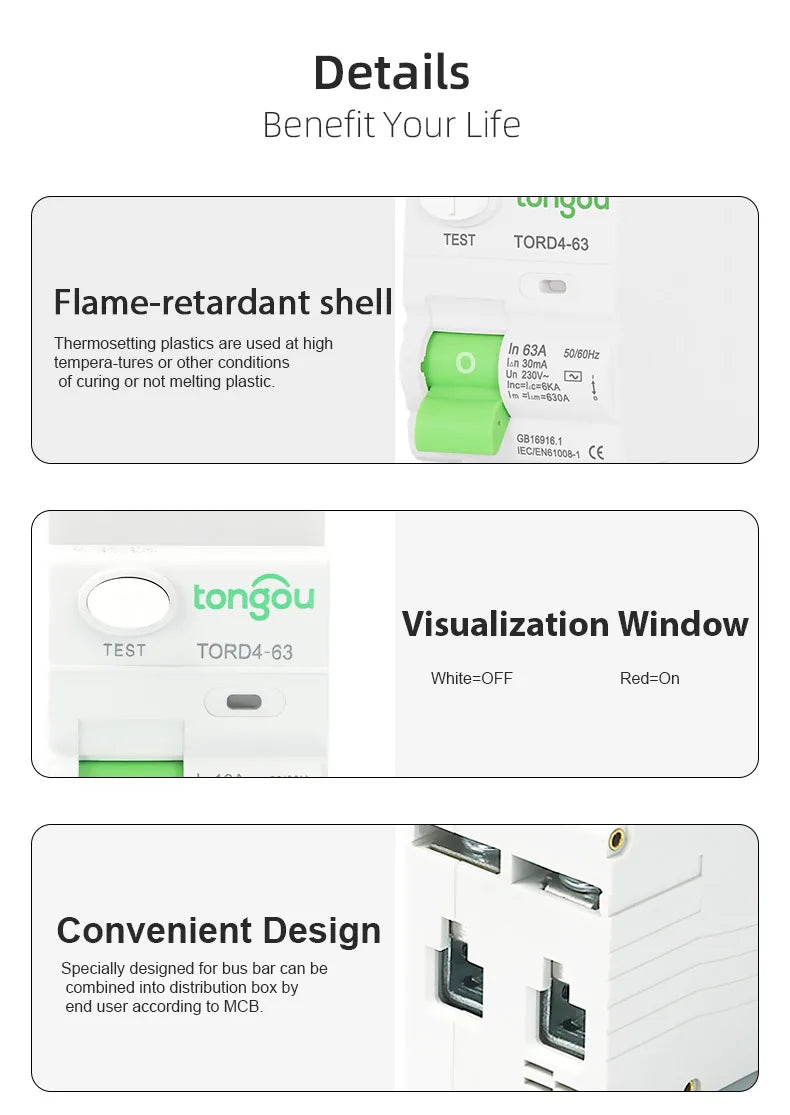

General:

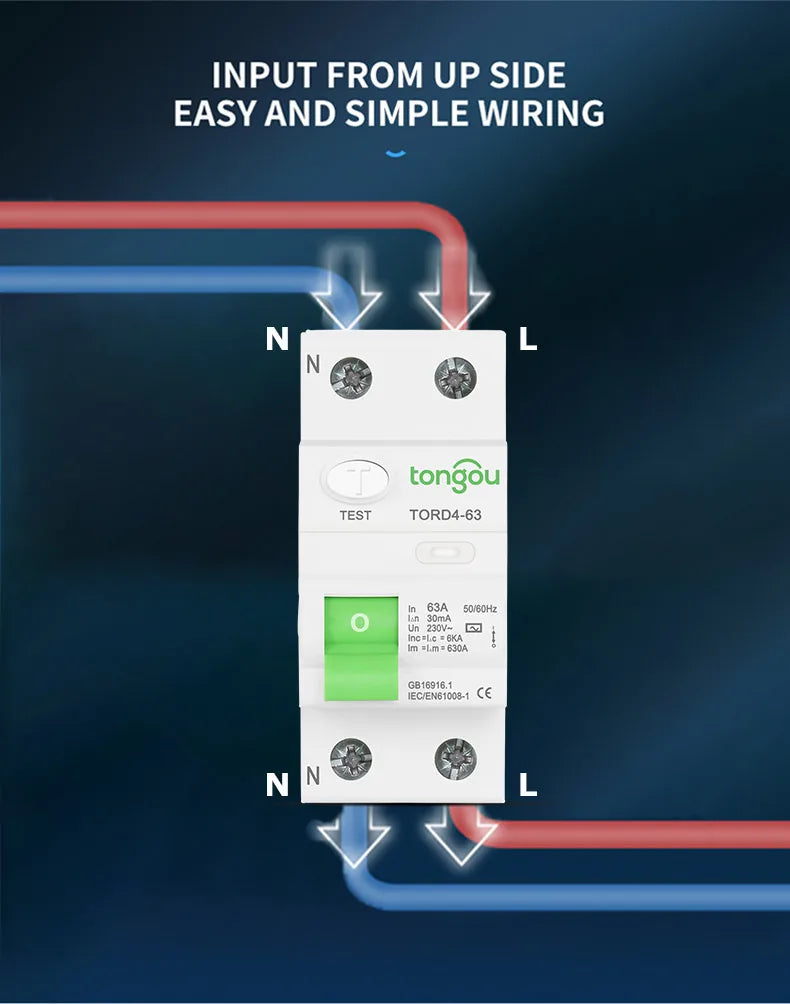

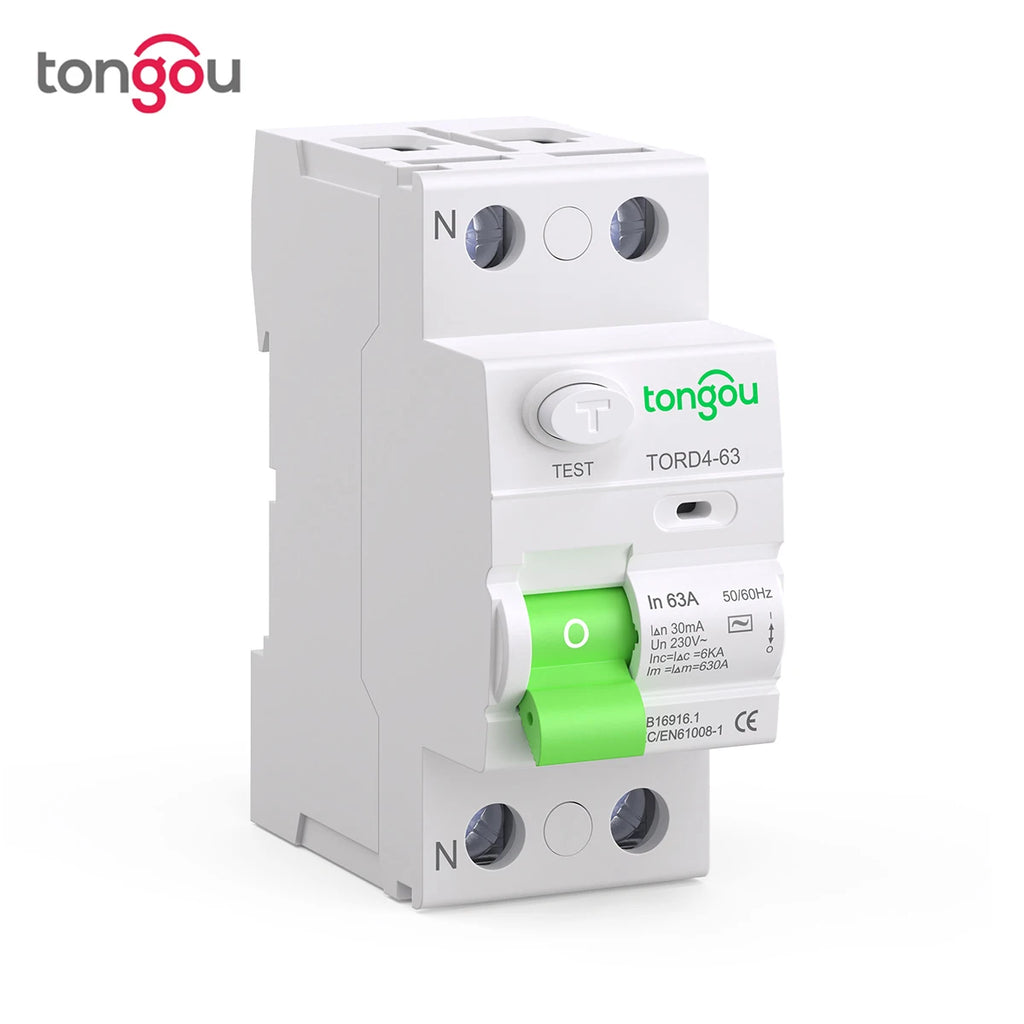

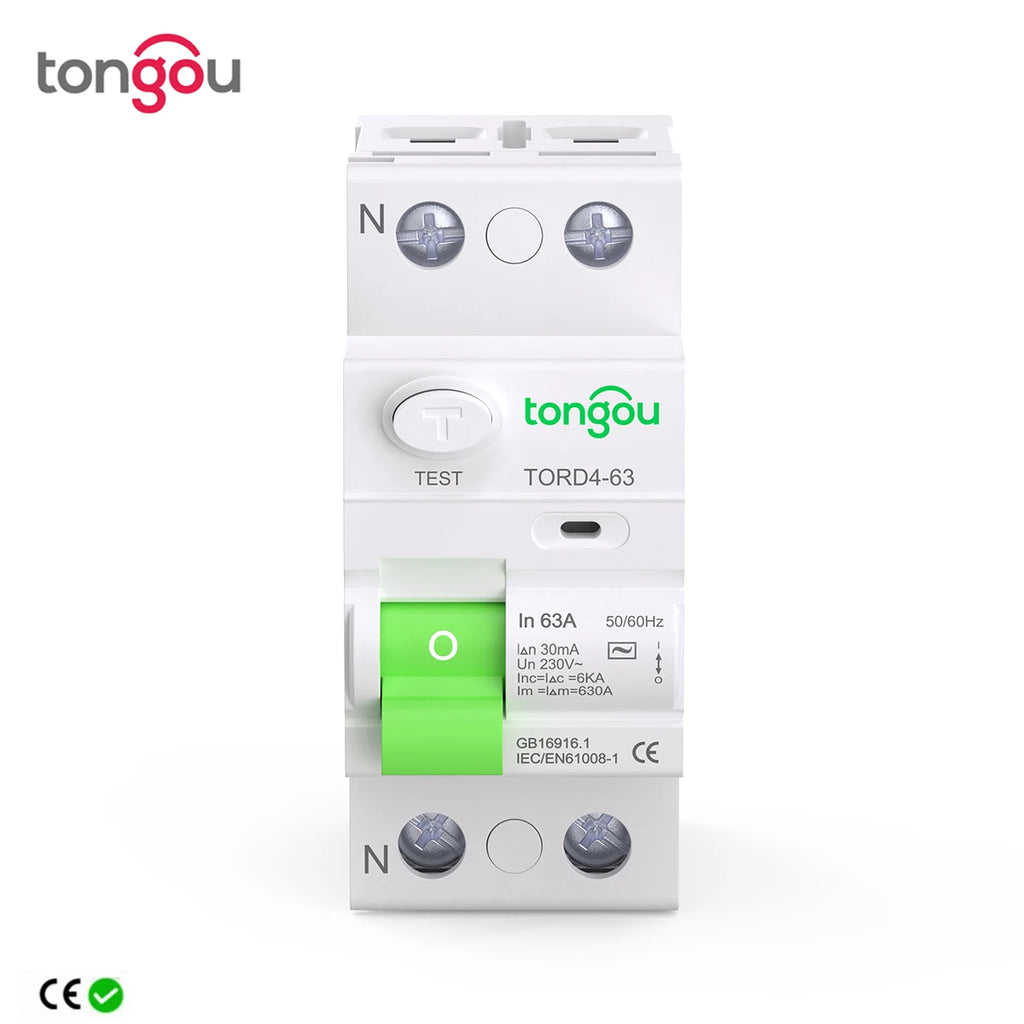

There is a wiring diagram above the test button, please follow the it. The power supply must enter from the top and output from the bottom. The neutral line on the left and the live line on the right.
Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230 AC, frequency 50/60Hz and rated current up to 16Amp.

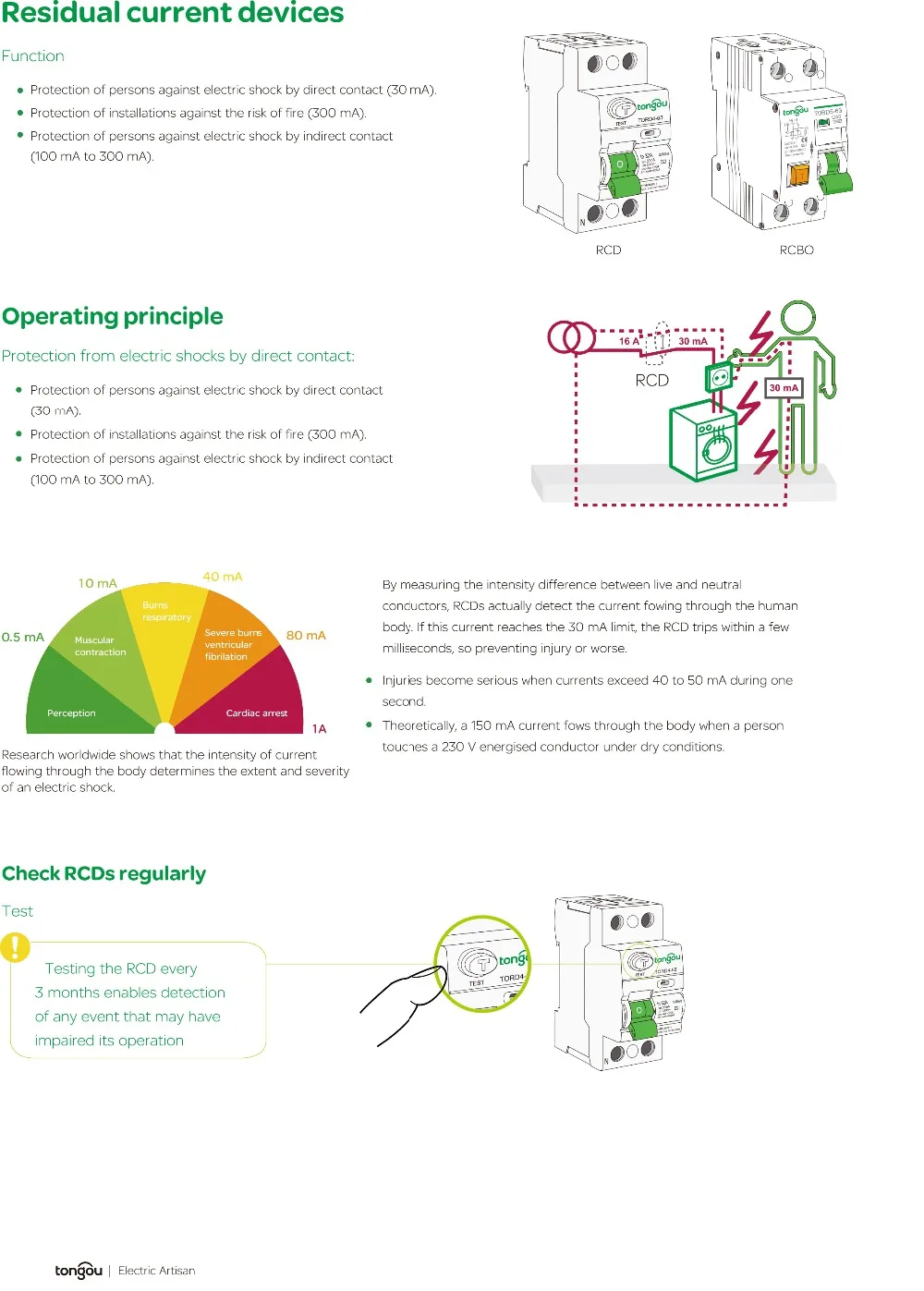

The RCCB provides indirect protection to the operator’s body under such condition that the exposed live parts should be connected to a proper earthing pole.The RCCB also provides protection against the fire danger caused by earth fault current due to function failure of over-current protection device.
Special tips:

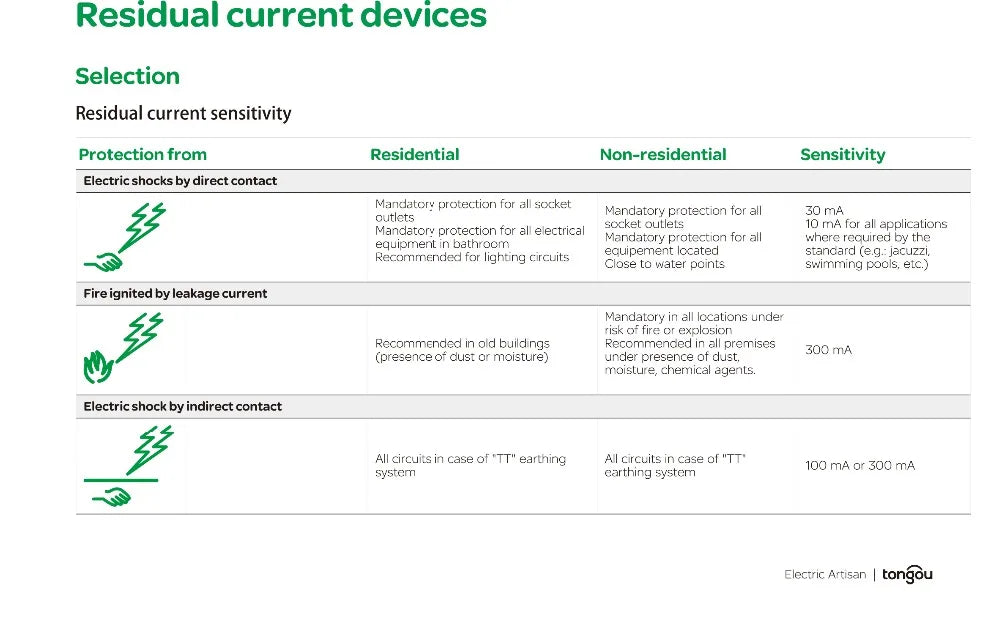

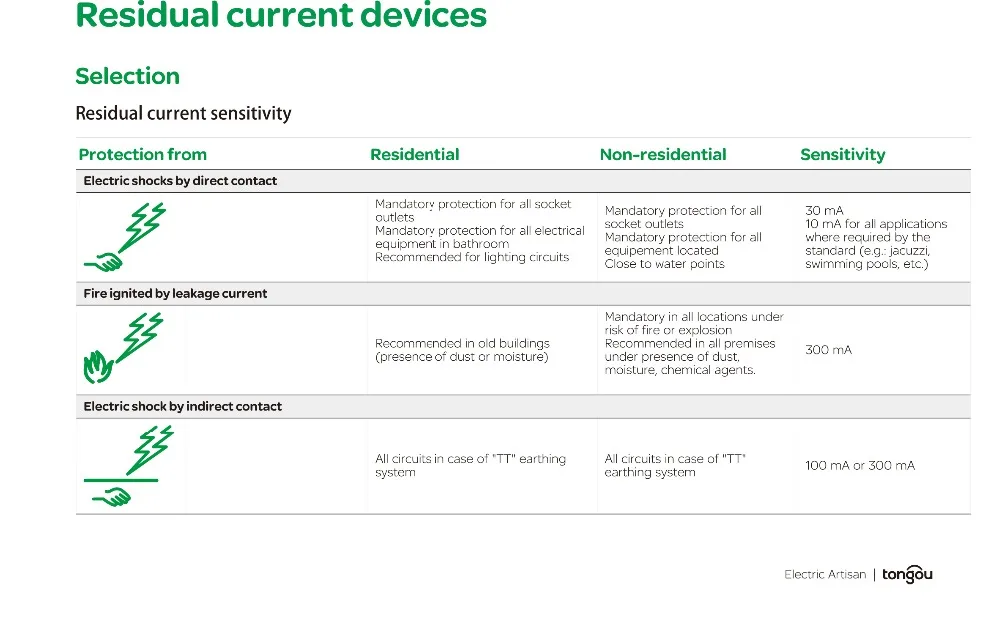

1. RCCB with rated sensitivity up to 10mA could be used as supplementary protecting device in case other
protecting device fails its protection against electric shock.
2. RCCB designed for household installation and other similar application, is for non-professional operation,
and no maintenance is required.
3. RCCB provides on protection against electric shock resulted from direct contacts of both protected lines,or
leakage current between these two lines.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to RCCB as precaution against potential surge voltage and current occurring at its power input side.

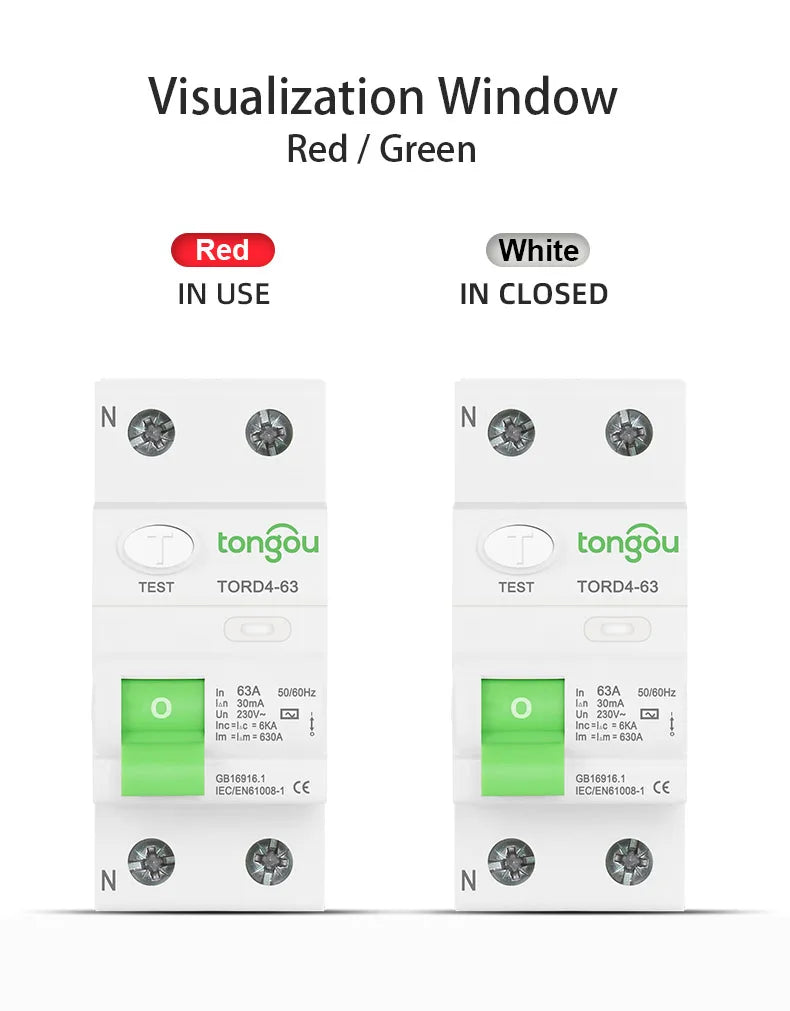

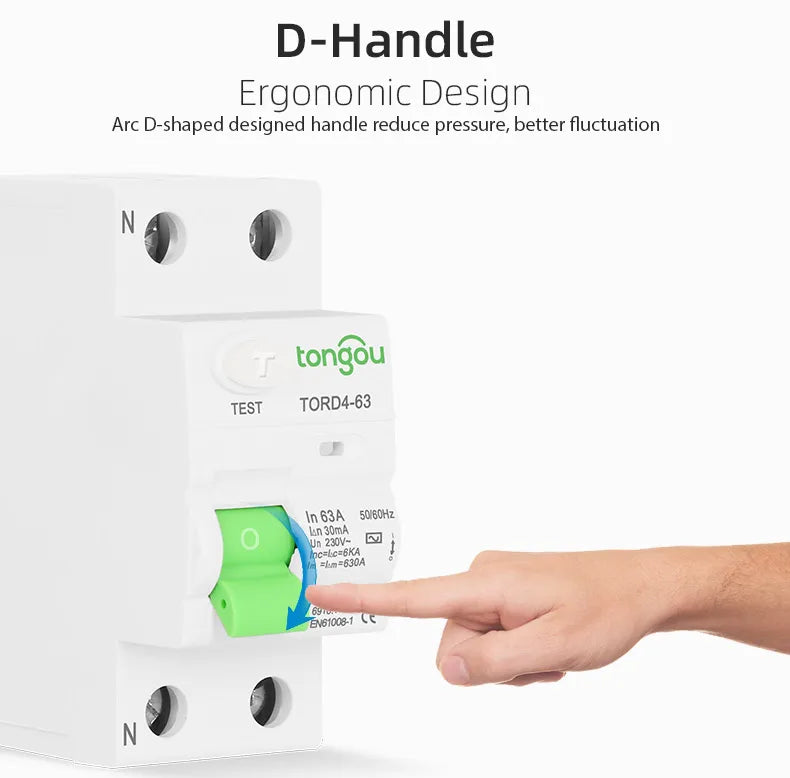

5. Satisfying conditions and applications as mentioned above,RCCB with “ON-OFF” indicating device is considered suitable for isolation function.

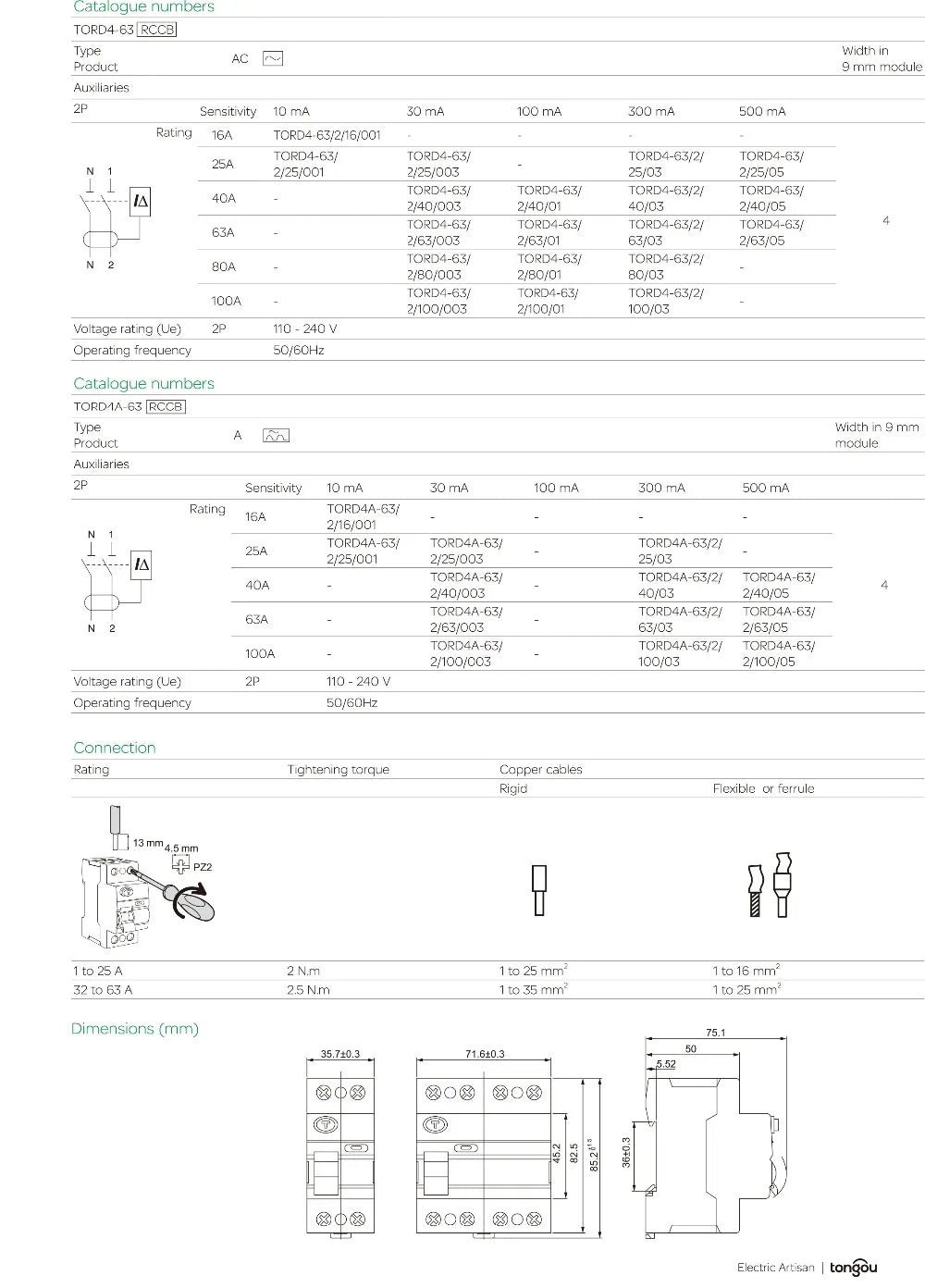

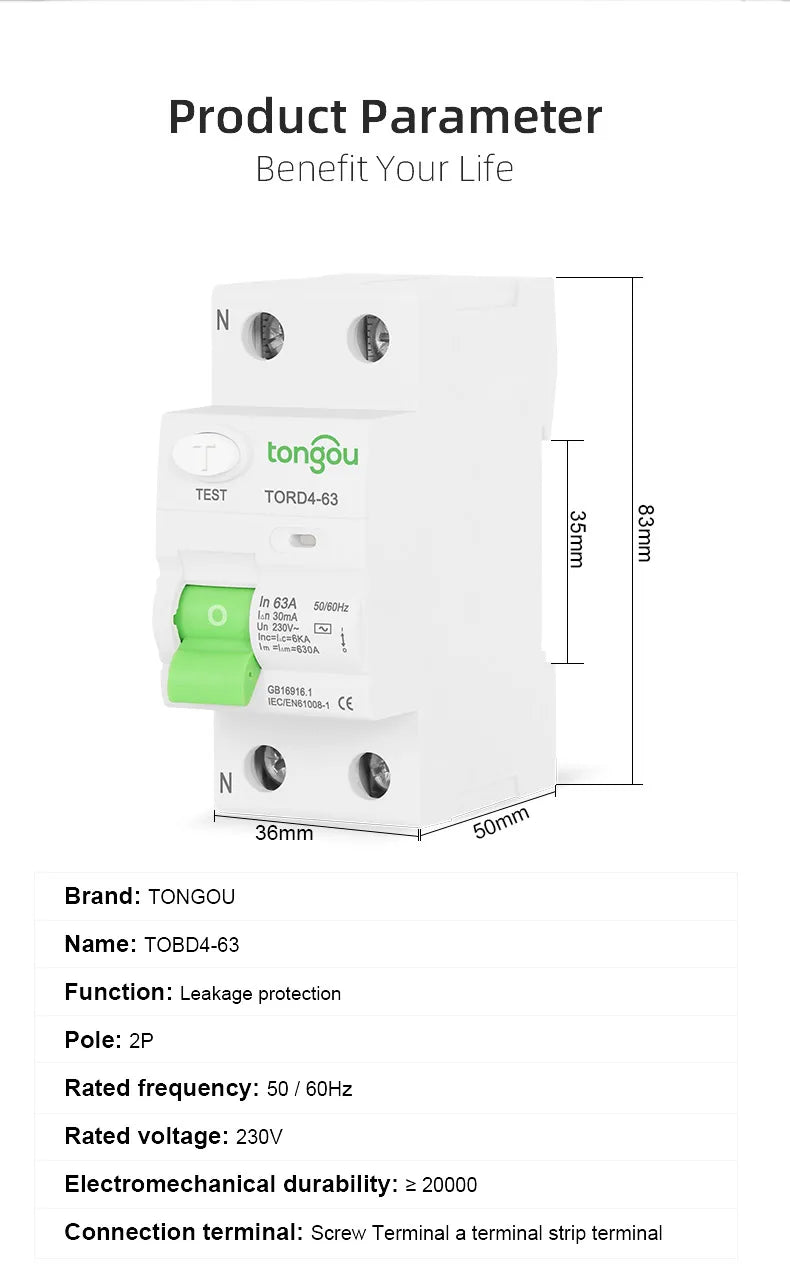

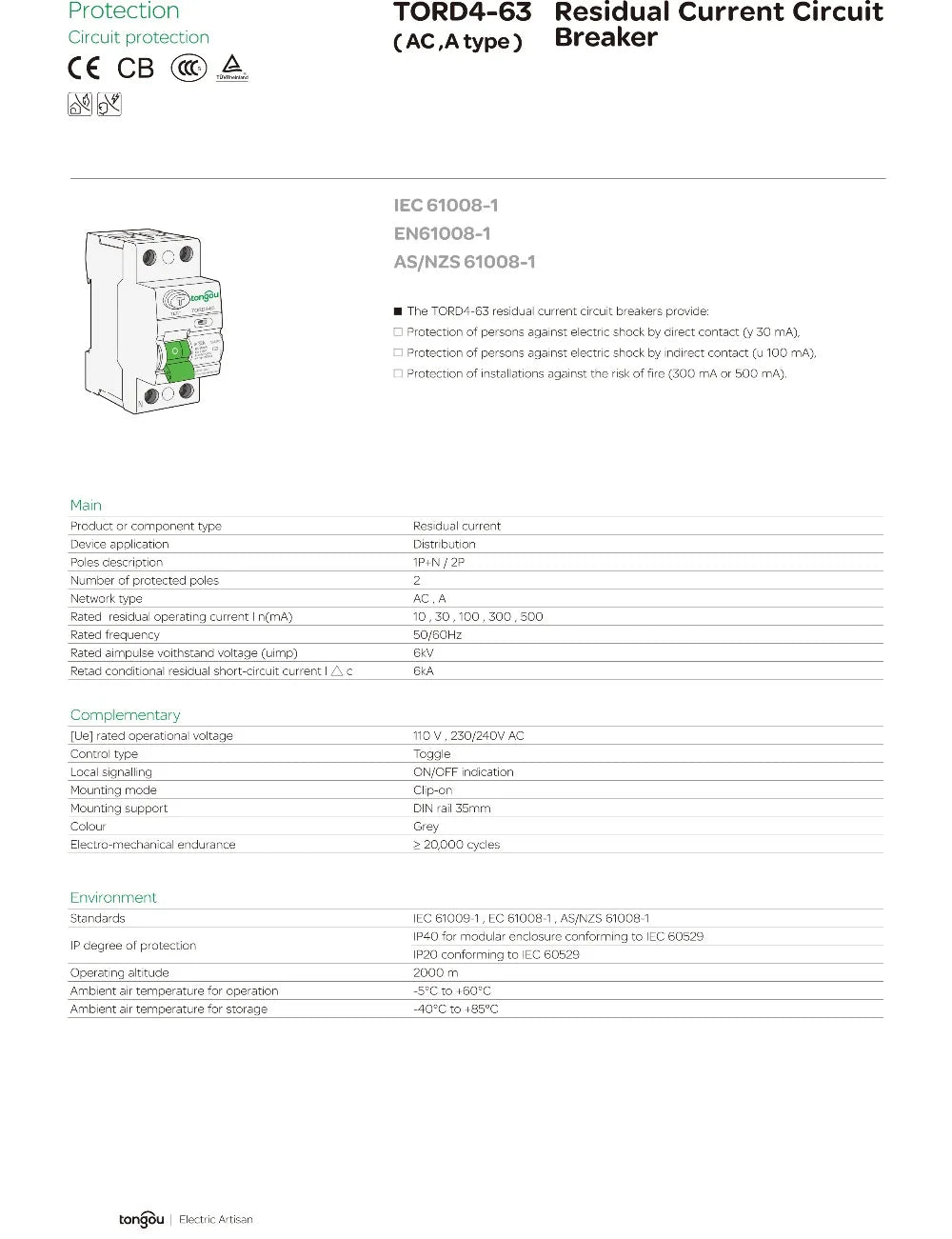

Model Name |
TORD4-63 |
Model |
Electronic / Magnetic type |
Residual Current characteristic: |
AC |
Pole No: |
2P |
Rated making and breaking capacity |
630A |
Rated current（A） |
16A |
Rated voltage |
110V 220V 230V AC |
Rated frequency |
50/60Hz |
Rated residual operating current |△(A): |
0.01 |
Rated residual non operating current |△ no: |
0.5|△ n |
Rated conditional short-circuit current inc: |
6kA |
Rated conditional residual short-circuit current |△c: |
6kA |
Tripping duration: |
Instantaneous tripping ≤0.1s |
Residual tripping current range: |
0.5||△n~|△n |
Electro-mechanical endurance |
≥20000 cycles |
Connection capacity: |
Rigid conductor 25mm⊃2; |
Connection terminal |
Screw terminal |
Fastening torque |
2.0 Nm |
Installation |

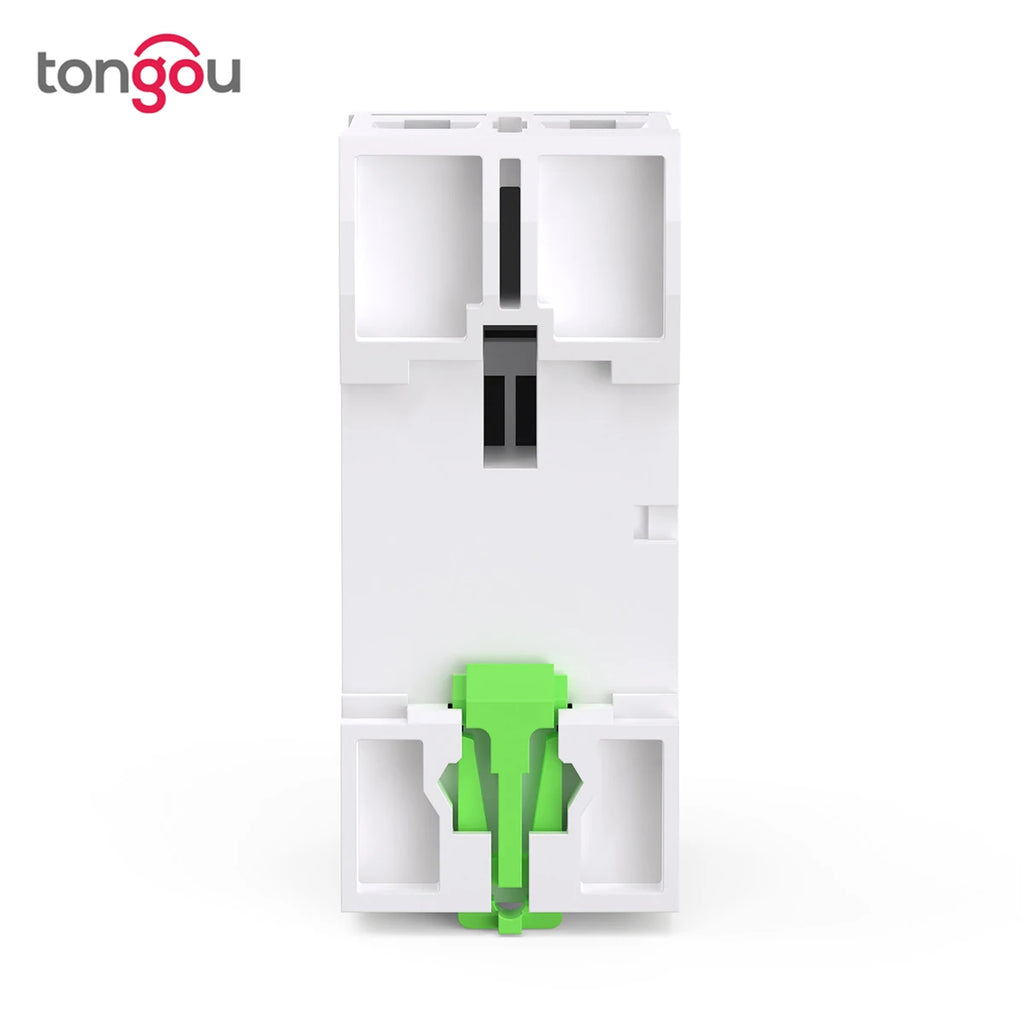

On symmetrical DIN rail 35mm |
