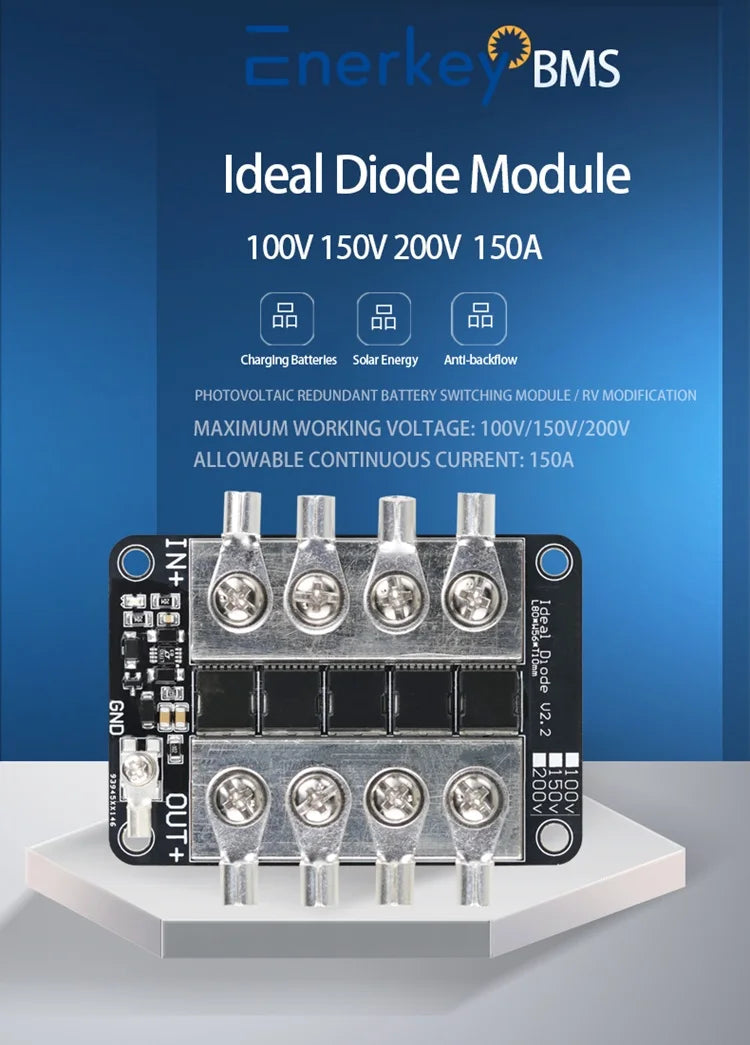

Enerkey Ideal Diode 100V 150V 200V 150A High Current Photovoltaic Solar Base Station Industrial Control Redundancy Switching
Enerkey Ideal Diode 100V 150V 200V 150A High Current Photovoltaic Solar Base Station Industrial Control Redundancy Switching
SPECIFICATIONS
Accessory Type: Battery Accessories
Allowable Continuous Current: 100A
Allowable Operating Voltage Range: 12-200V
Application: Solar Panel and Battery charging anti-backfilling
Battery Included: No
Brand Name: ENERKEY
Charger included: N
Electronic: No
High-concerned chemical: None
Model Number: EK-iD100V/150V/200V150A
Origin: Mainland China

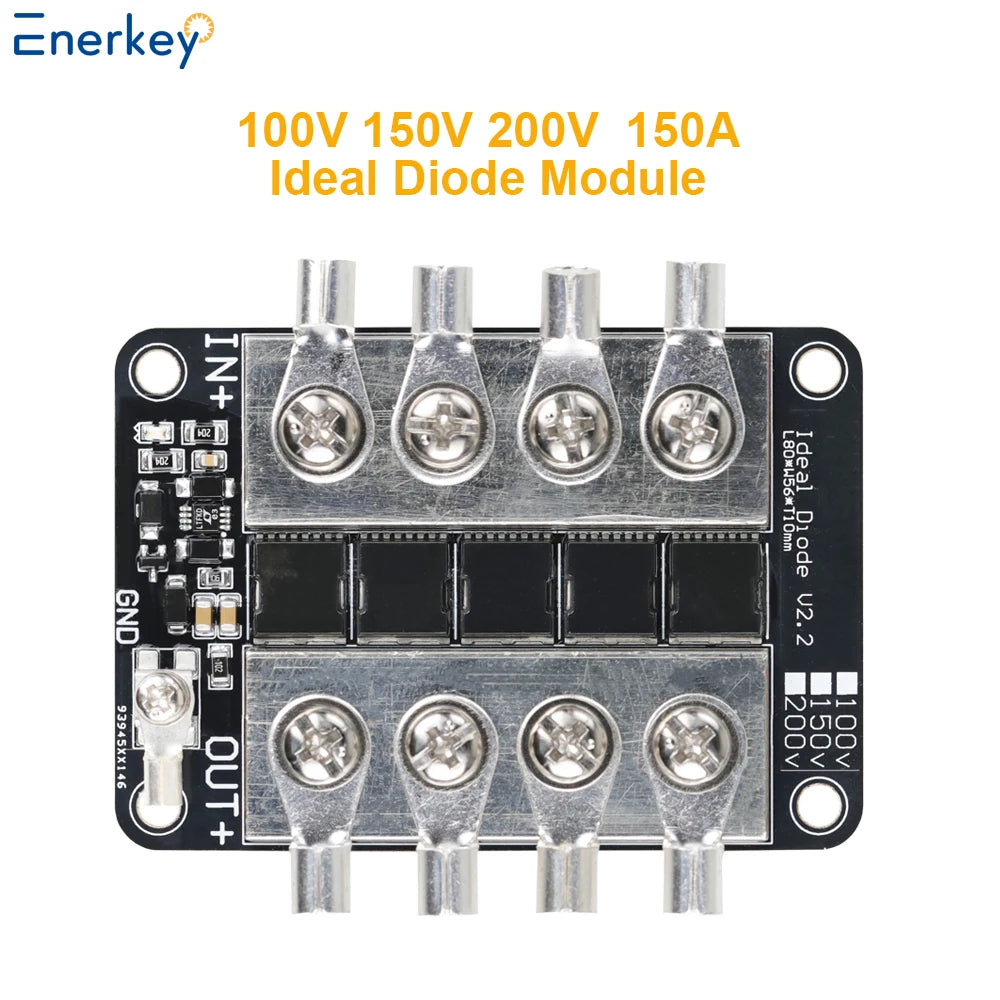

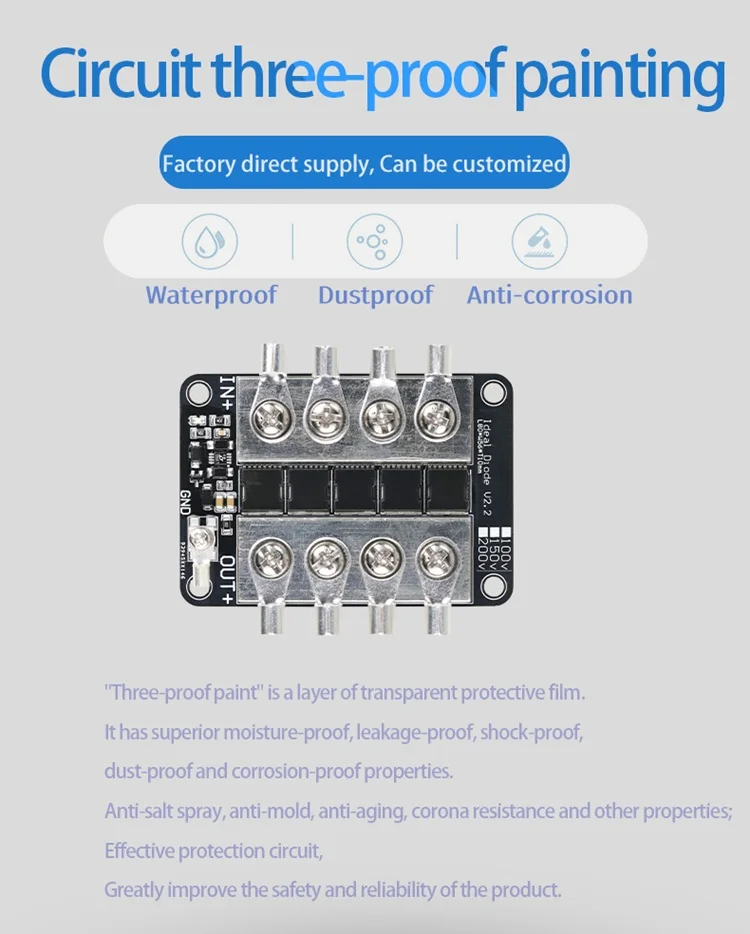

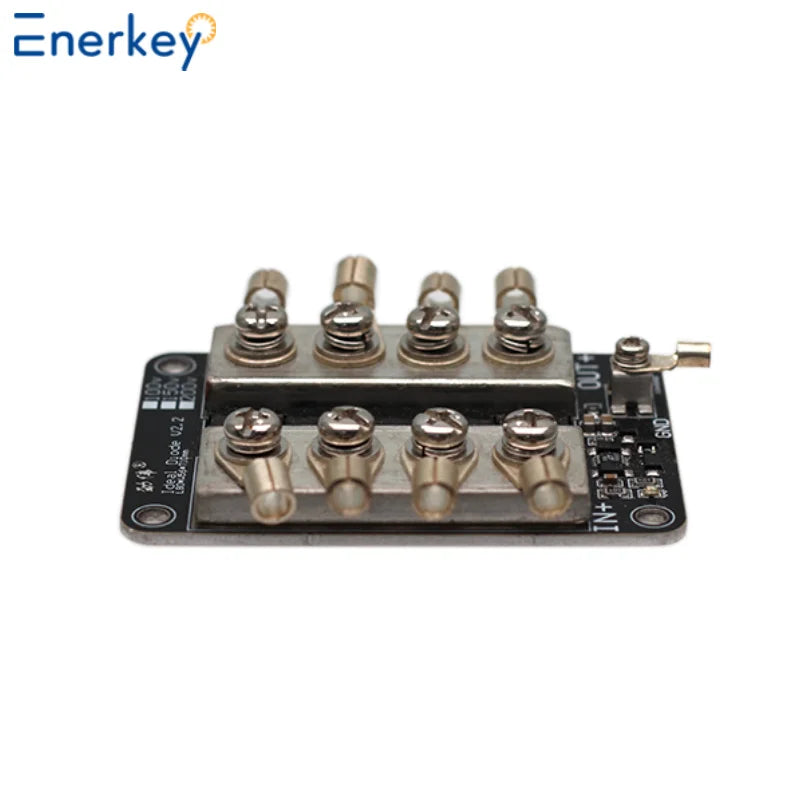

Product name: 100V150V200V 150A Ideal Diode Module
Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

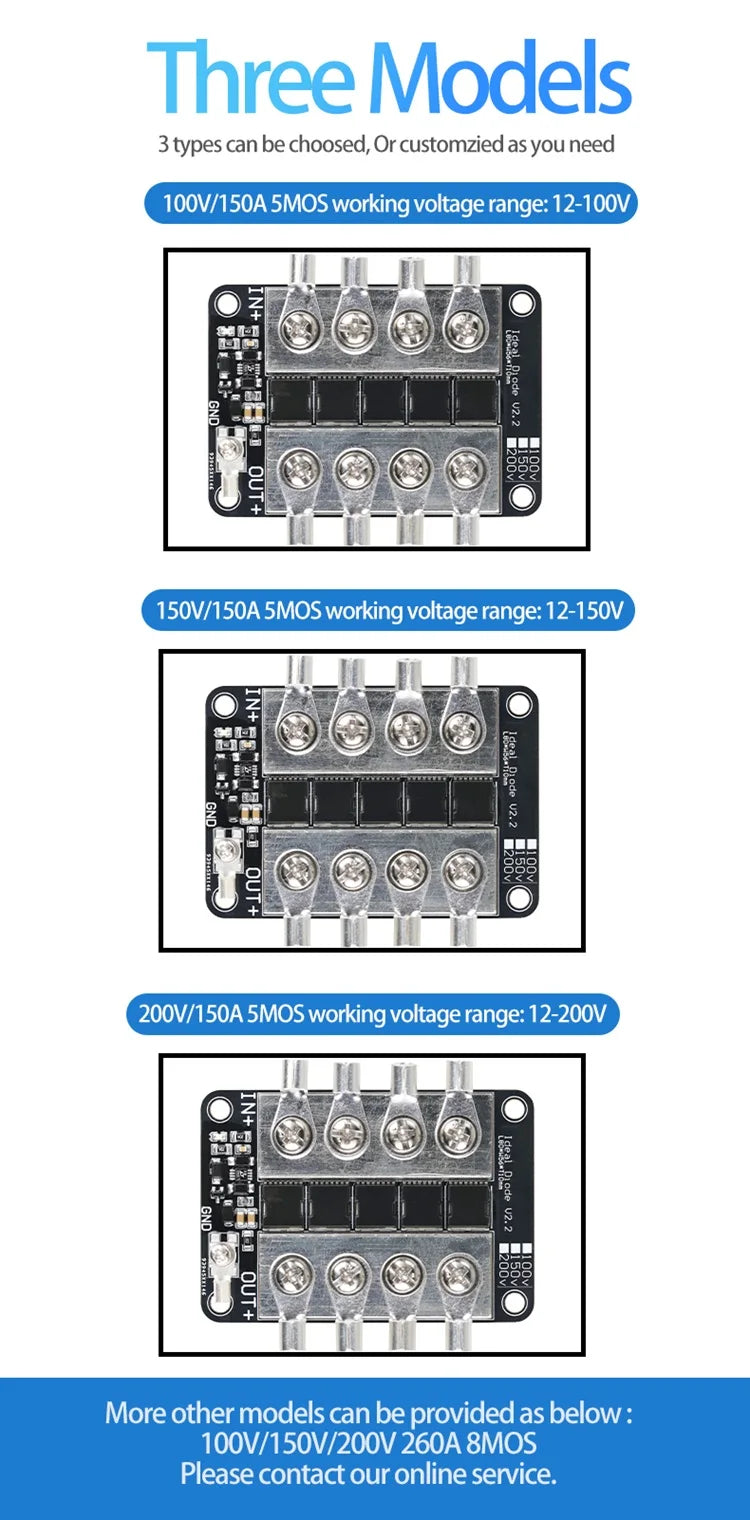

Product model |
EK-iD100V150A |

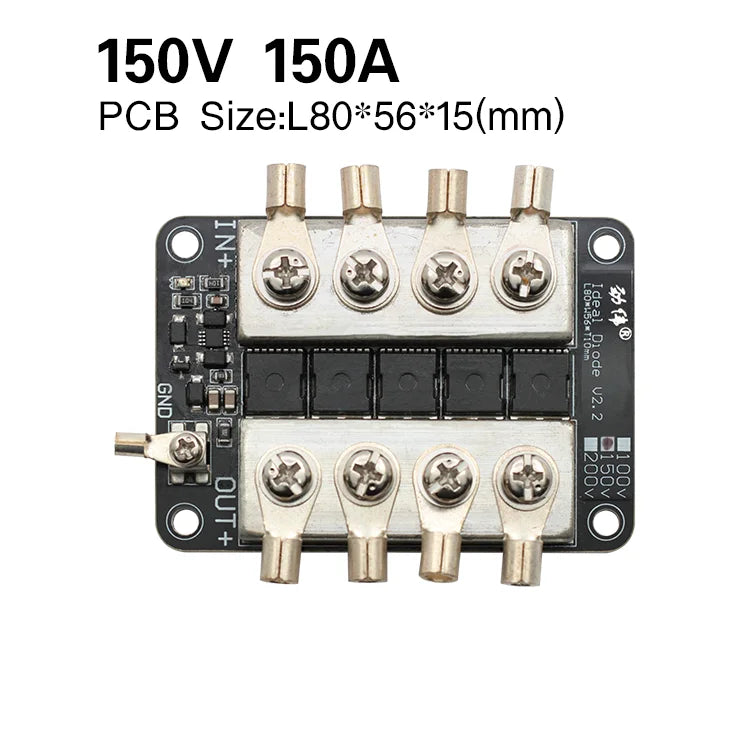

EK-iD150V150A |
EK-iD200V150A |
|
Allowable operating voltage range |
12V-100V |
12V-150V |
12V-200V |
|
Allowable continuous current |
150A |
||
Weight |
0.25kg |
||

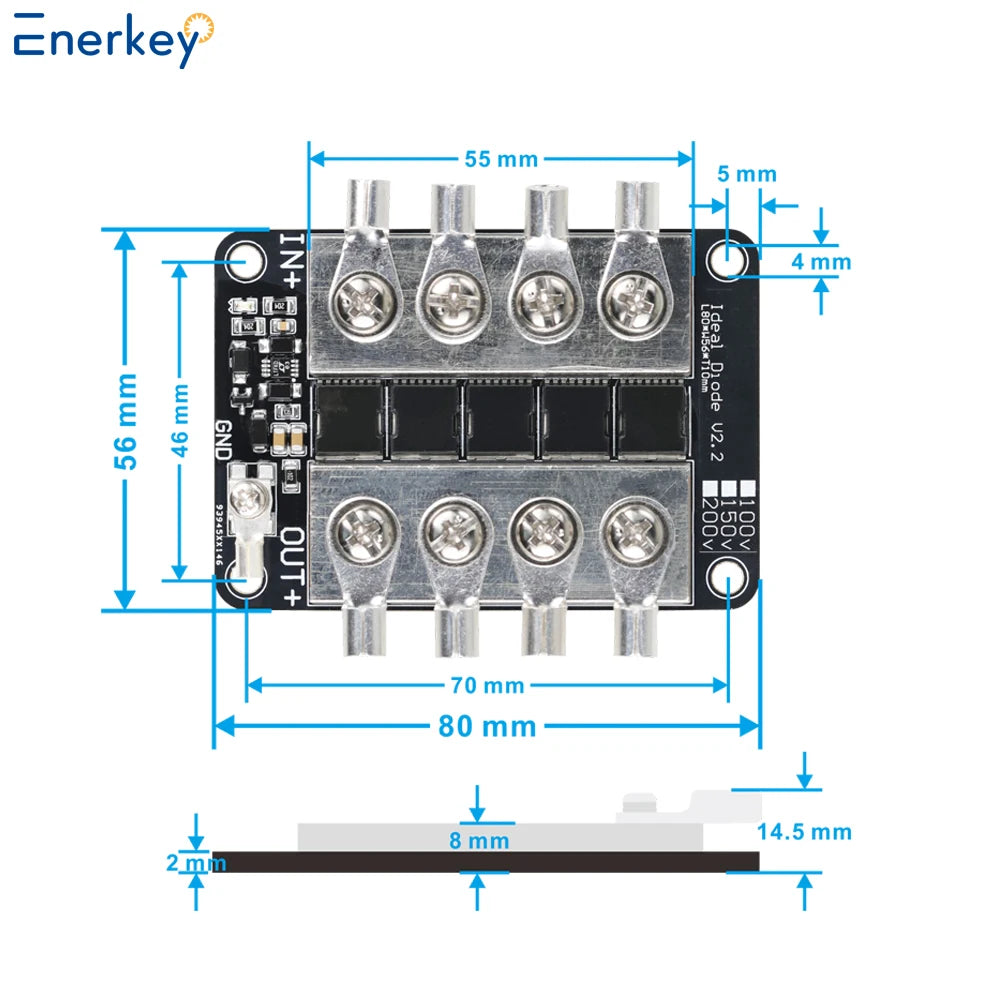

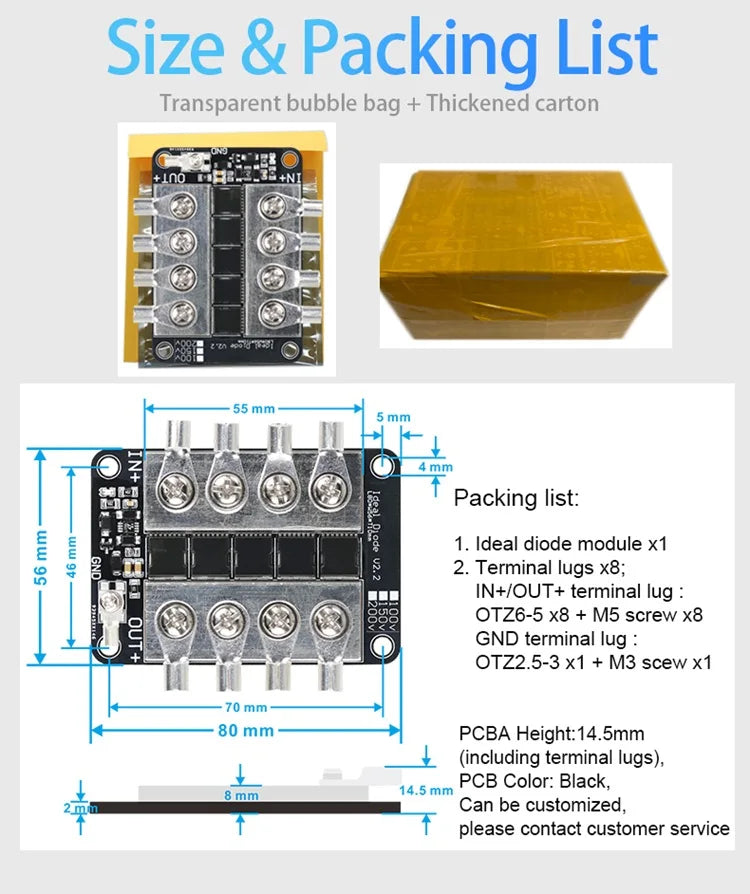

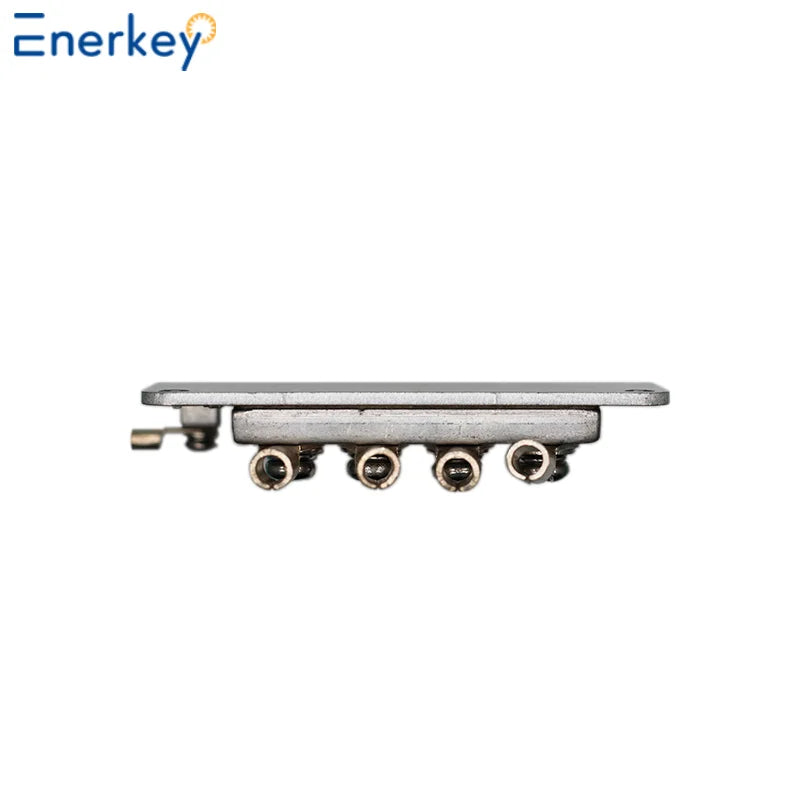

Size(mm) |
L80*W56*T14.5 |
||
Static working current |
0.6mA-1.5mA |
||
Copper foil thickness |
2.0 oz |
||

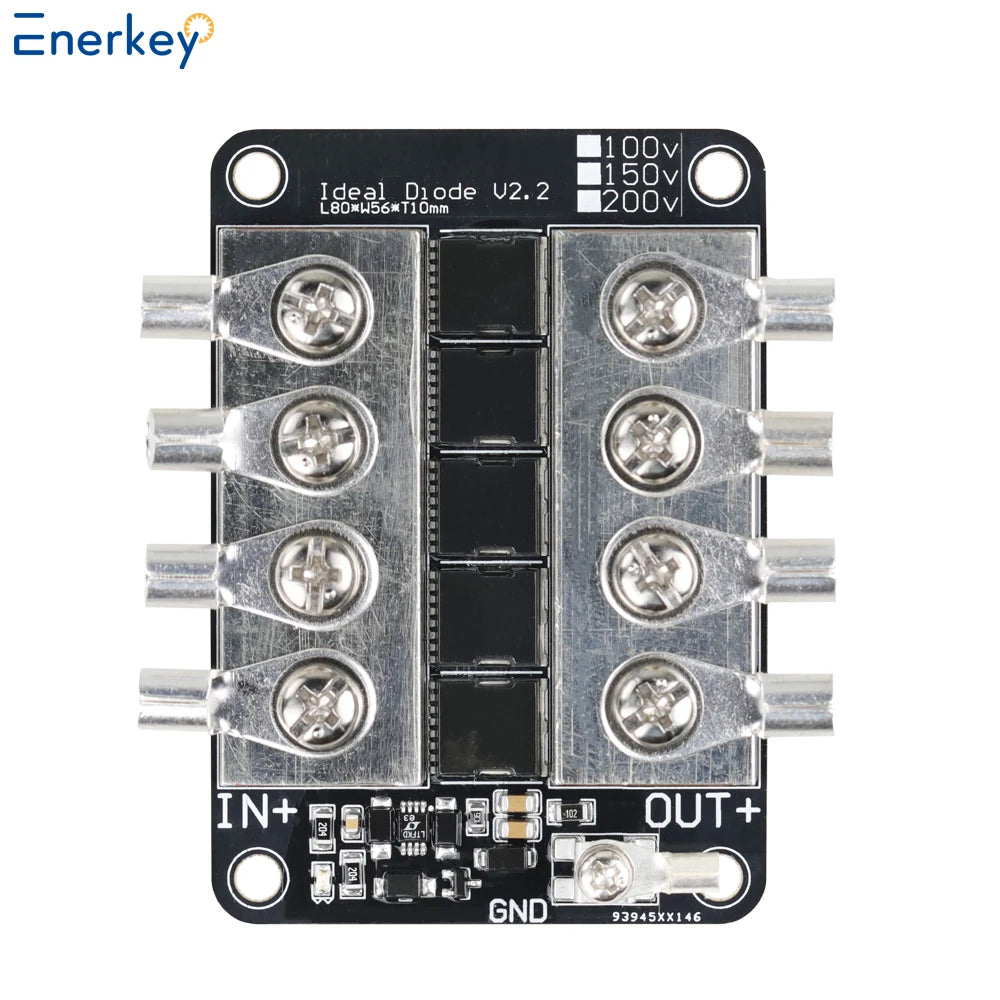

MOS quantity |
5MOS |
||
PCB Material |
Aluminum plate |
||
On-state voltage drop |
Negligible |
||
Remark |
Can't be used in rectifier circuits |
||
Feature |
Battery charging, solar energy anti-reverse flow, anti-backflow, |
||
Application |
Solar panels, battery charging, DC-DC constant voltage and |
||
Notes:

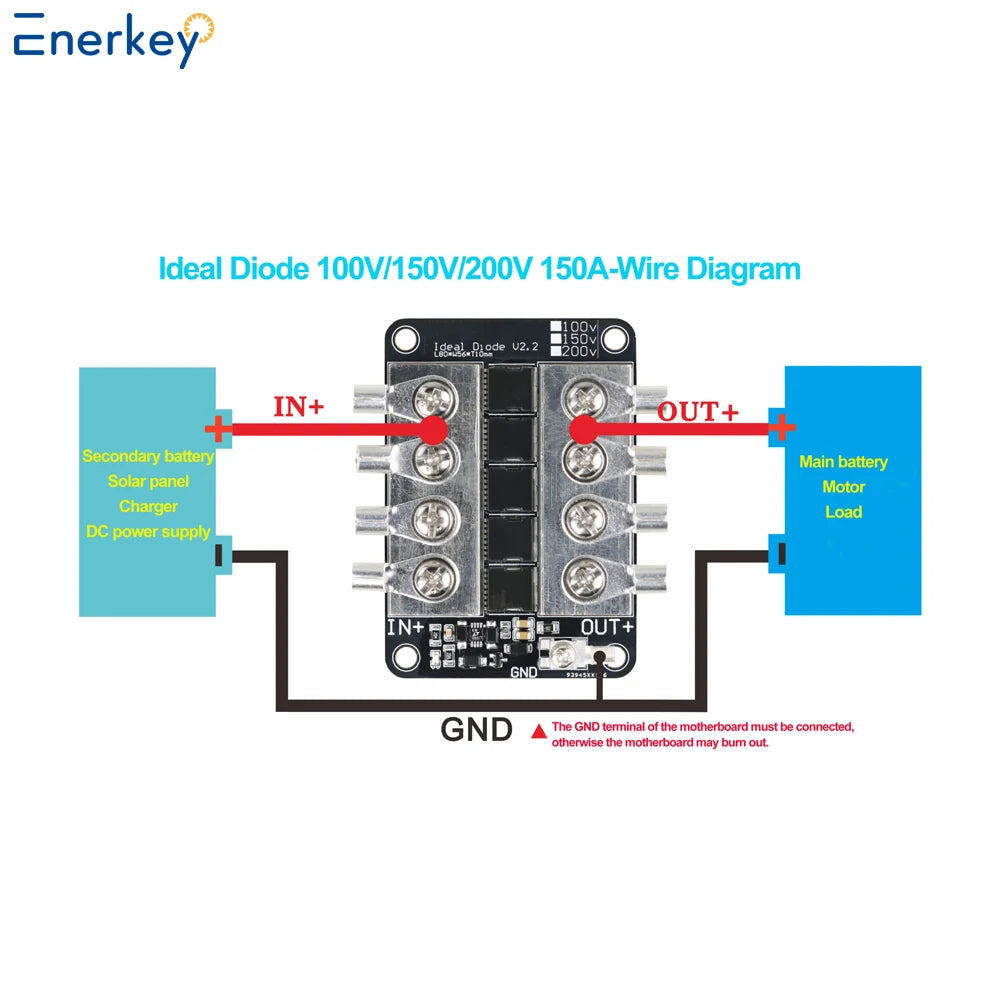

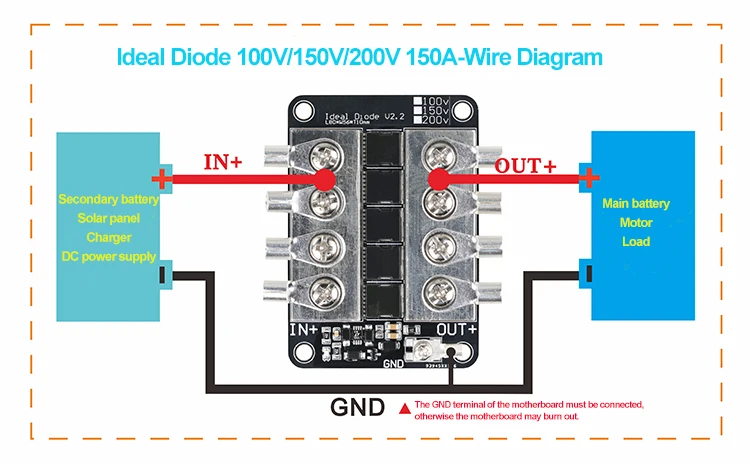

1. Before wiring, the secondary battery voltage (current battery voltage) must be less than or equal to the primary battery voltage. This also applies to rewiring after disconnecting the wiring. Otherwise, the excessive current from the secondary battery charging the primary battery may cause wiring burnout or even fire.
2. The negative GND terminal on the board must be connected. Otherwise, it will not function as an ideal diode, and high current operation may damage the board.
1. Positive high voltage ideal diode controller.This provides a lower loss path than schottky diodes and provides a more efficient solution for high-power applications, saving valuable circuit board space by reducing the need for cooling.

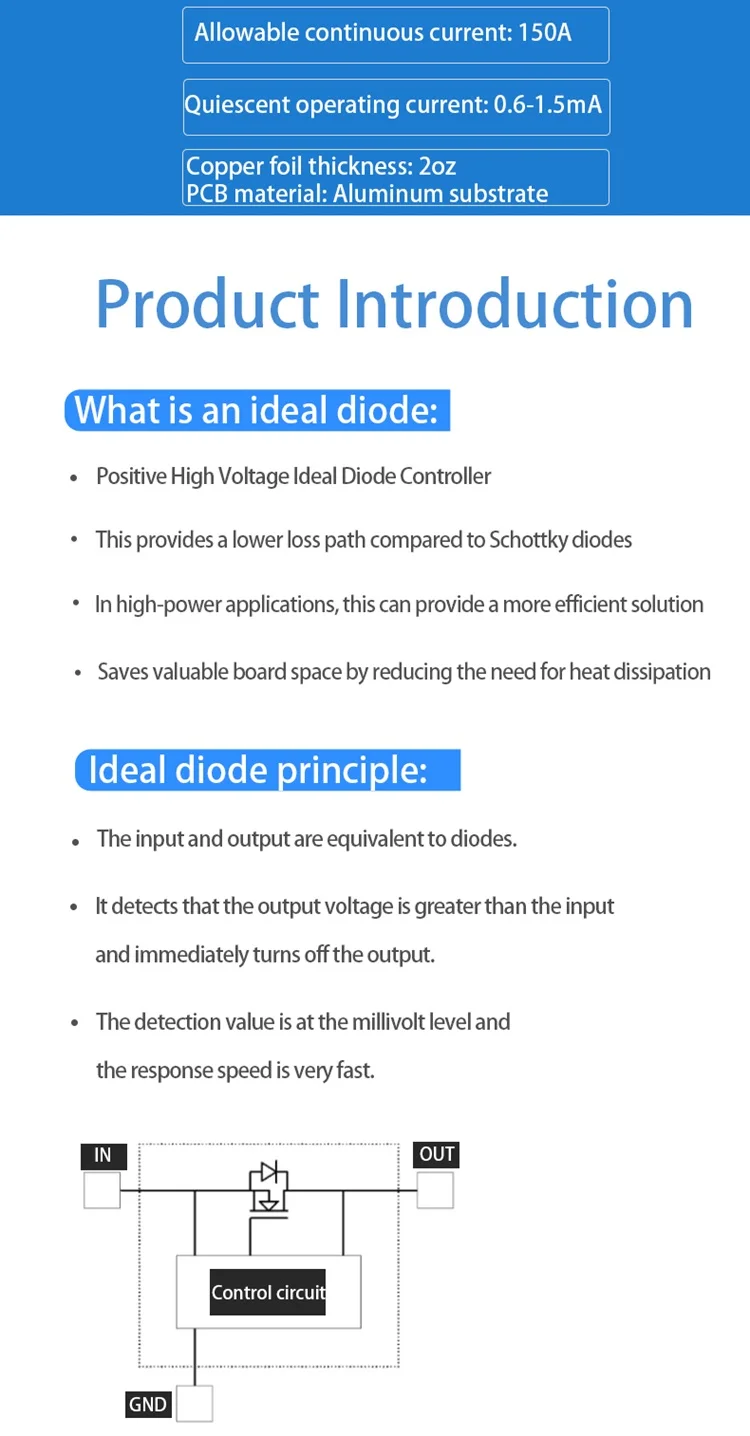

2. Principle of ideal diode:
The input and output are equivalent to diodes.When the output voltage is detected to be higher than the input, the output is immediately shut down. The detection value is millivolt level, and the response speed is very fast.
Purpose: to replace ordinary large current diode, ideal choice of parallel solar panels, parallel use of batteries of different capacity, and double power installation
Performance introduction:
Allowable working voltage range: 12-100v/150V/200V
Static operating current: 0.6-1.5 mA, negligible for the whole system.
1. This version is an improved version, and it will not burn the module even if the anode and cathode are connected backwards! Greatly improved installation safety performance!
2. Ideal diode refers to the diode with ultra-low internal resistance as its name implies. The conducting pressure drop of ordinary diode is more than 0.6v, while the conducting pressure drop of ideal diode is almost negligible.
3. Ideal diode cannot be used for rectification circuit!
