SPECIFICATIONS

Automatic ShutdownAfter 15 minutes start up will shut down automatically without any operation: Protection Level:IP65

Battery Included: Yes

Brand Name: ETCR

Certification: CE

DIY Supplies: Electrical

Dimensions: 280mm(L)*260mm(W)*160mm(H)

Display Type: Digital Only

ETCR3500 Earth Resistance Range0.50MΩ ~ 2.00TΩ: ETCR3500B Earth Resistance Range:0.50MΩ ~ 5.00TΩ

High-concerned chemical: None

Model Number: ETCR3500 ETCR3500B

Operating Temperature: -20℃-50℃

Origin: Mainland China

Test TimerAutomatic record test time, time range 0s~9999s: Test Current: 0.01nA - 5mA

Testing Voltage: AC/DC 0V-1000V

Upload FunctionUpload the stored data to computer with USB communication cable.: Data Storage:1000 groups

Weight6500g(with package): Ramp Test Mode:The output voltage will start at 10% of the preset voltage and increase in steps of 10% until the preset voltage is reached.

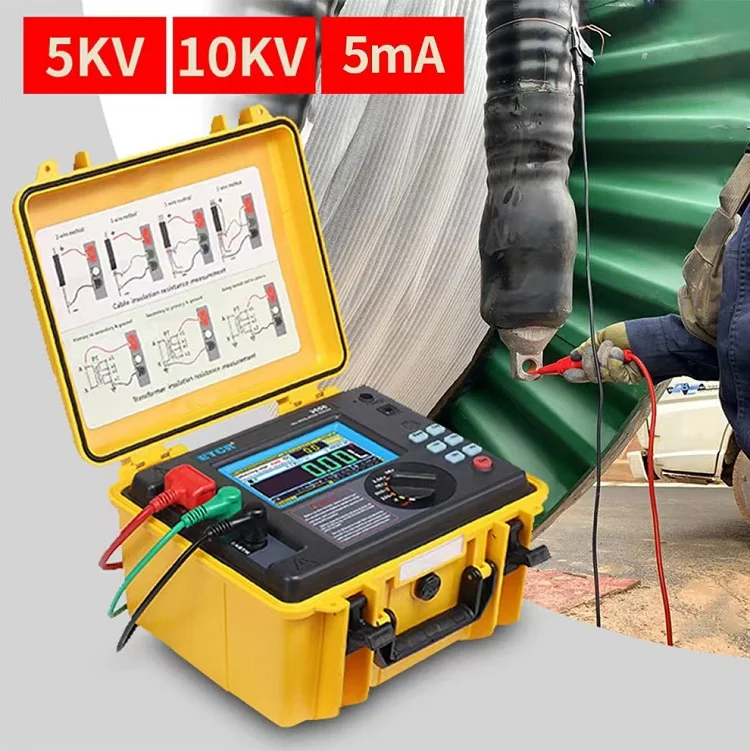

ETCR3500 ETCR3500B High Voltage Insulation Resistance Tester 5KV 10KV 5TΩ Digital Earth Resistance Multimeter RAMP FR DAR Detect Mode USB Data Upload Function

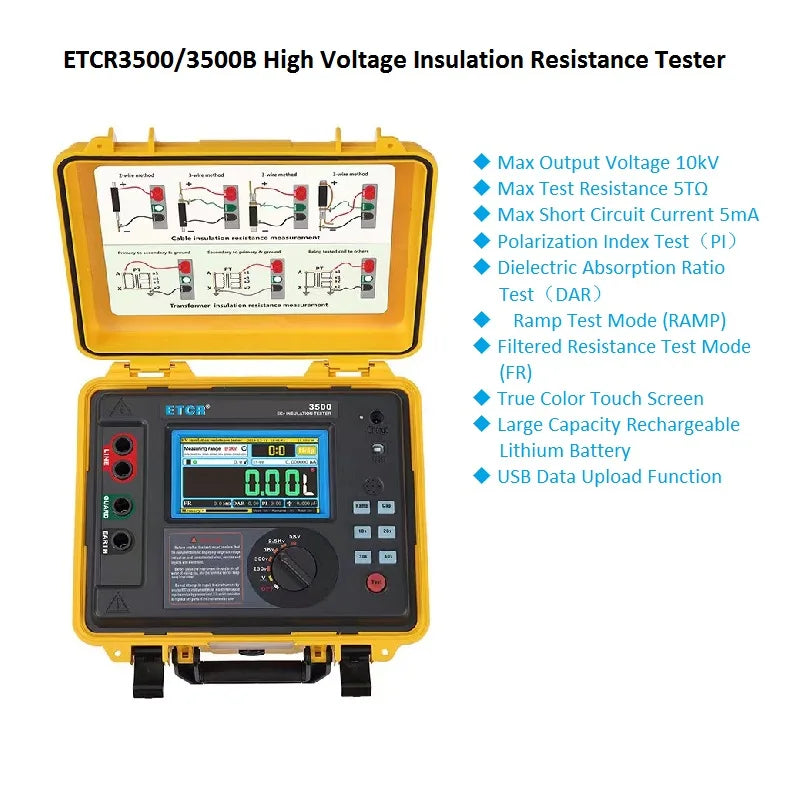

Main Points:

Ø USB Data Upload Function

Ø Large Capacity Rechargeable Lithium Battery

Ø True Color Touch Screen

Ø Filtered Resistance Test Mode (FR)

Ø Ramp Test Mode (RAMP)

Ø Dielectric Absorption Ratio Test（DAR）

Ø Polarization Index Test（PI）

Ø Max Short Circuit Current 5mA

Ø   Max Test Resistance 5TΩ

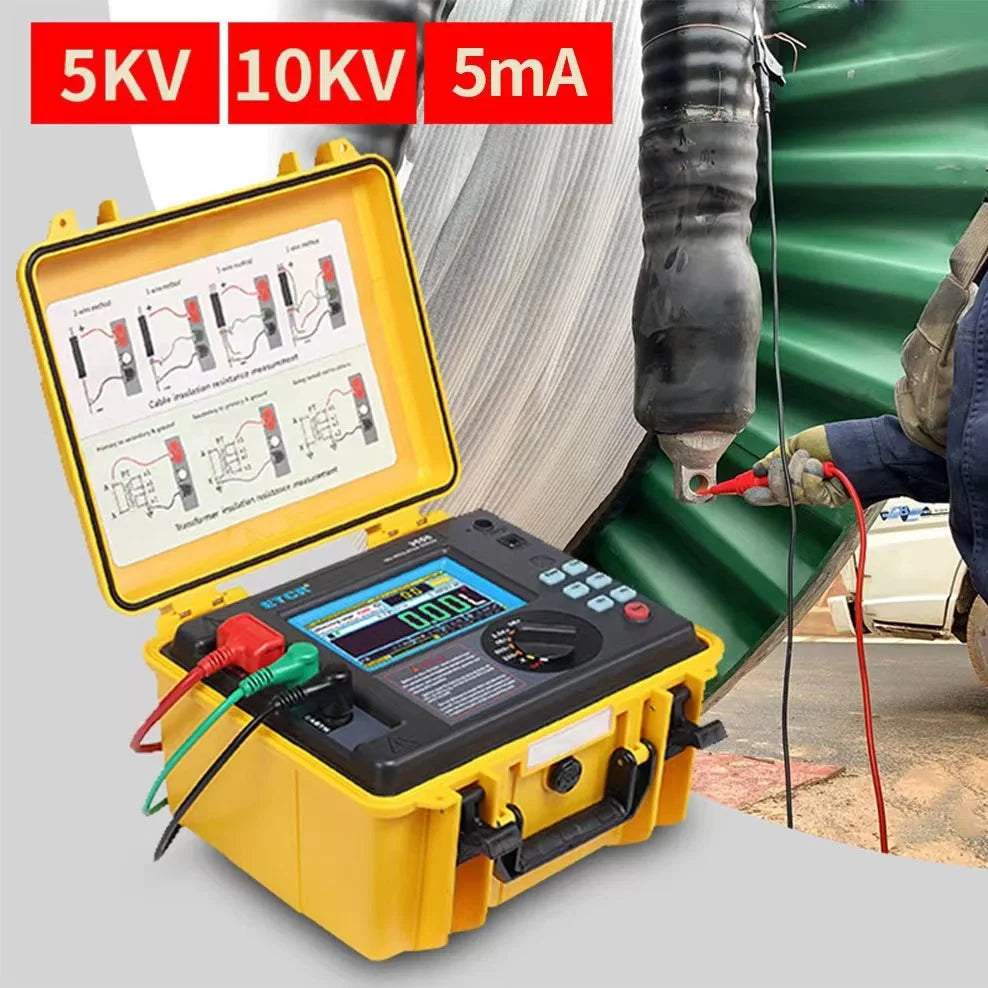

Ø Max Output Voltage 10kV

Product Introduction:

ETCR series High Voltage Insulation Resistance Tester is an intelligent high-end insulation resistance tester well-developed by ETCR

Company. The instrument with perfect test functions of various insulation resistance parameters and excellent anti-interference ability. The

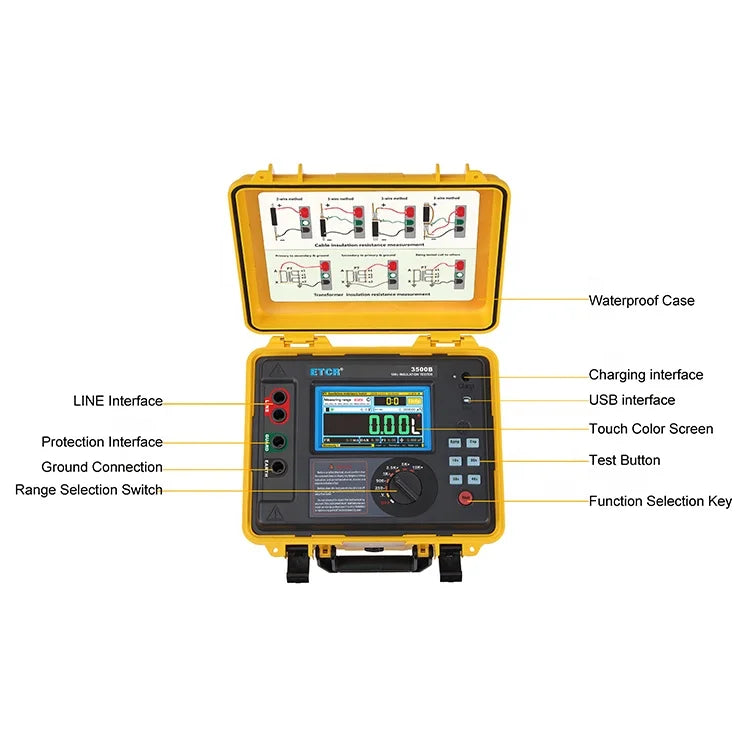

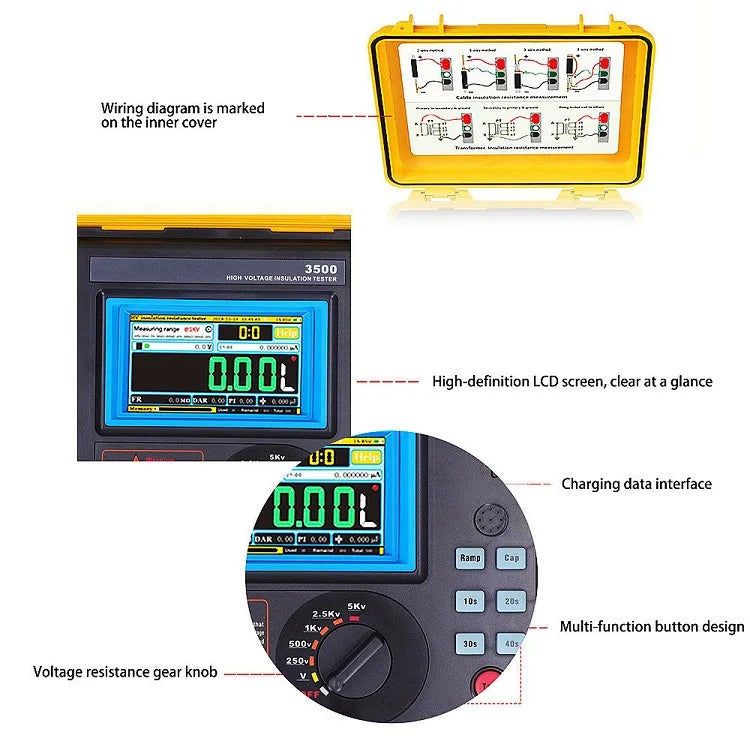

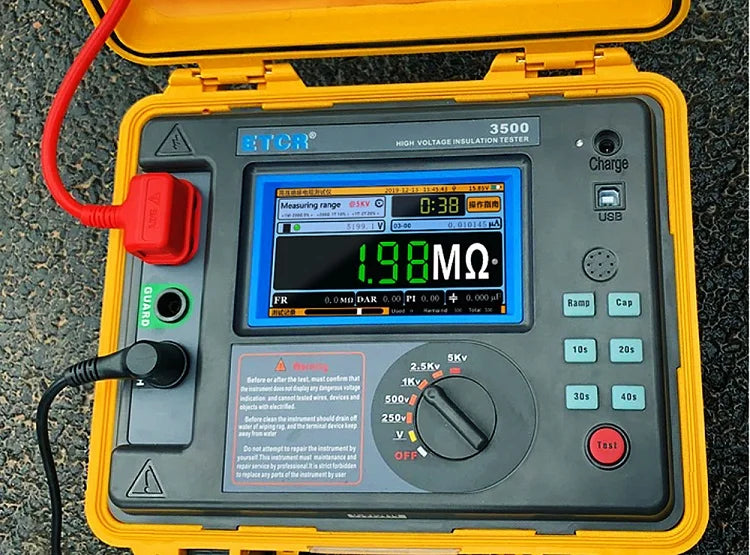

instrument adopts true color touch screen, all test data and battery power are displayed on the same screen, the combination of knob switch

and button makes the operation very simple. The user no need to memorize the operation method, click the "HELP" on the screen to pop

up the operation method which effectively guide the user to operate the instrument. The instrument has the function of rapid discharge and

automatically monitors the live voltage of the measured object. The voltage exceeds 36V will automatically prohibits the test to protect the

instrument and operators effectively.

The meter automatically stores test results which contain date and time, the touch screen can very convenient to consult the recorded

historical data, the fully isolated USB interface can upload the test data to the PC safely. The instrument is equipped with double insulation and

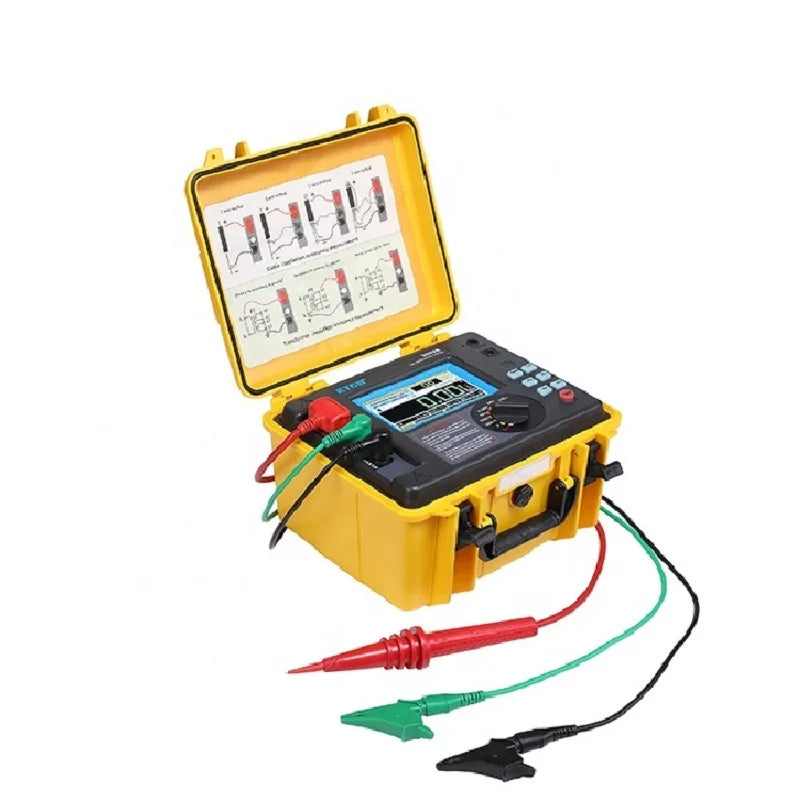

shielding layer test wire, and the high voltage rod is equipped with replaceable crocodile clips and hooks, which can be used in various test

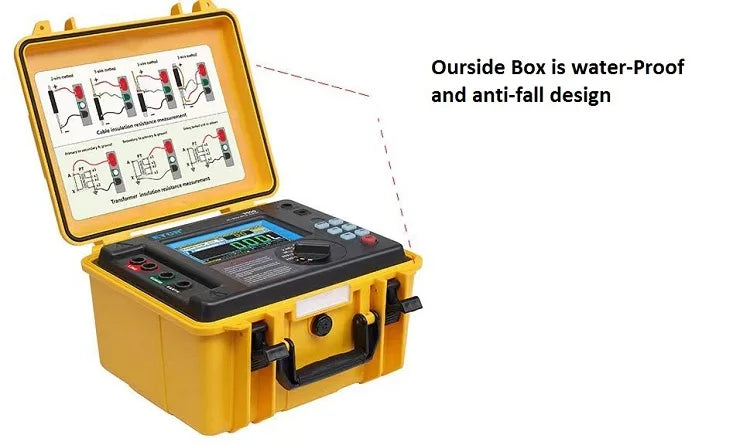

places. The instrument adopt hard double-shell structure, and the meter outer case with IP65 protection level, which can prevent moisture and

dust intrusion and collision during the transportation and storage process, protect the meter effectively.

Product Function:

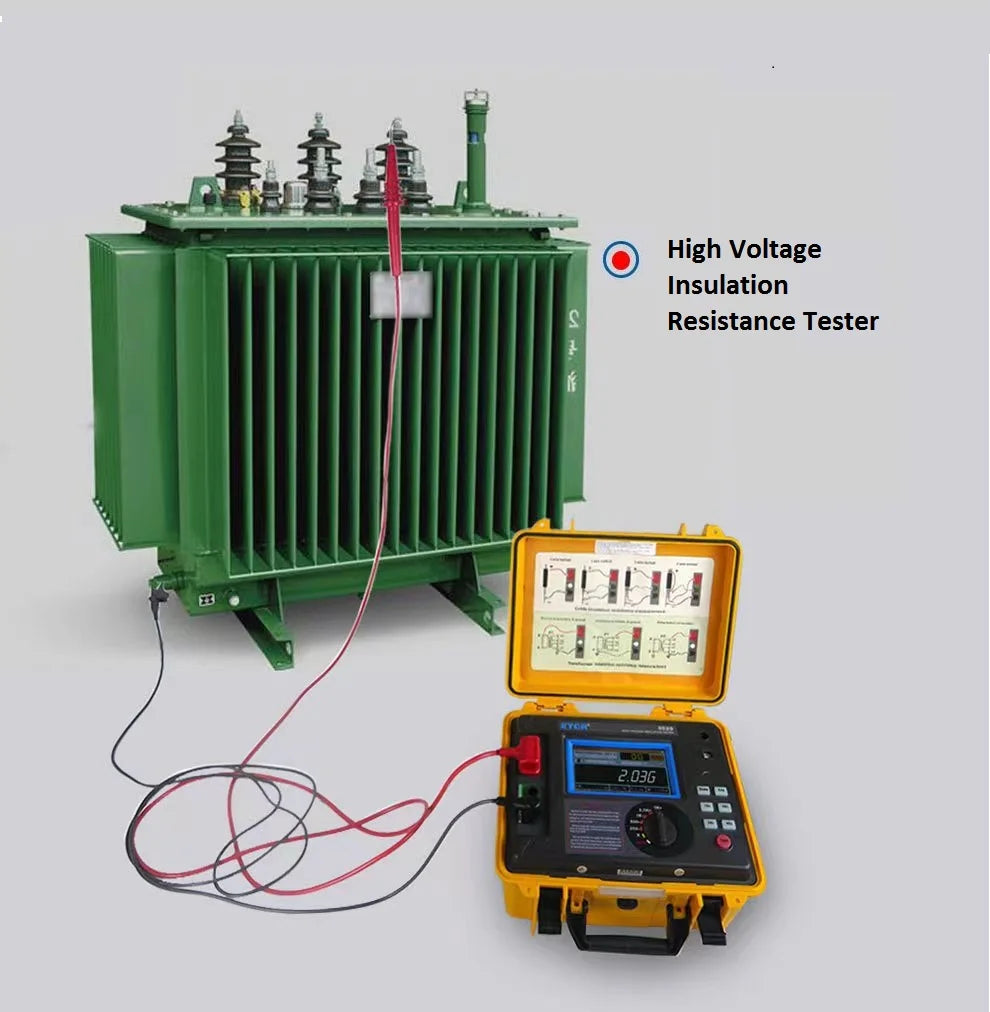

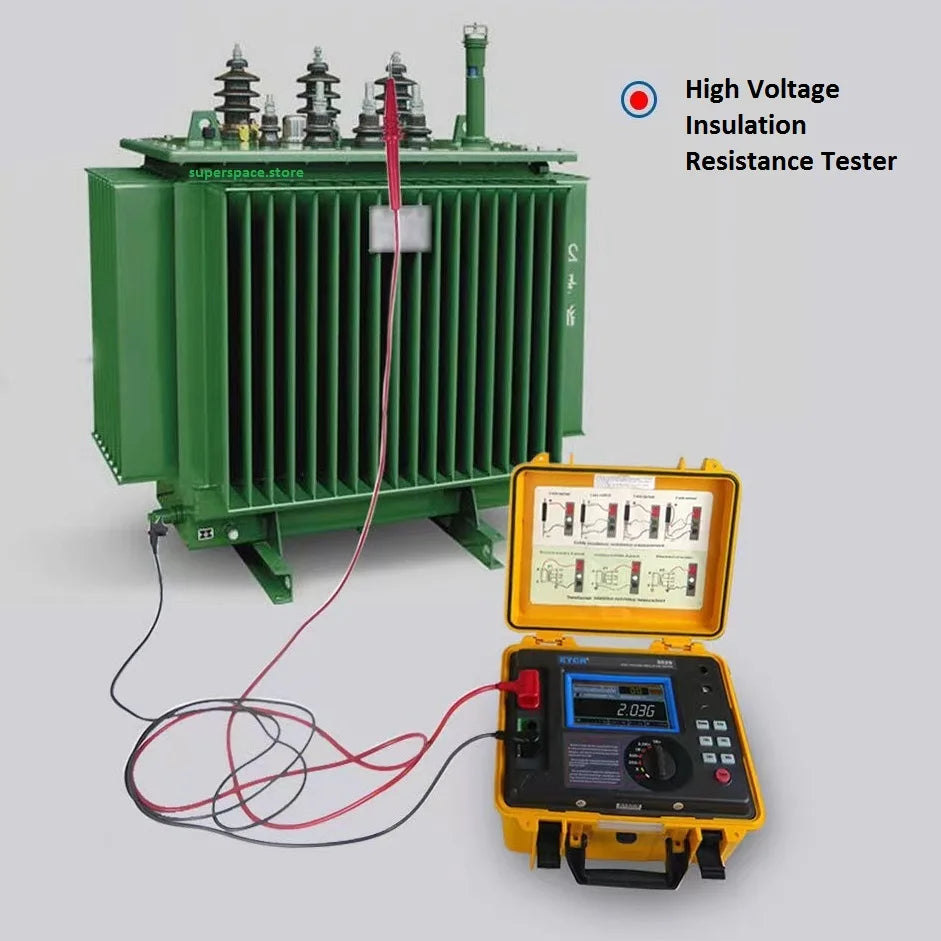

Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large

equipment.

Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR); ramp test mode(RAMP); filtered

resistance test (FR)

Voltage measurement(V); current measurement(nA).

Product Feature:

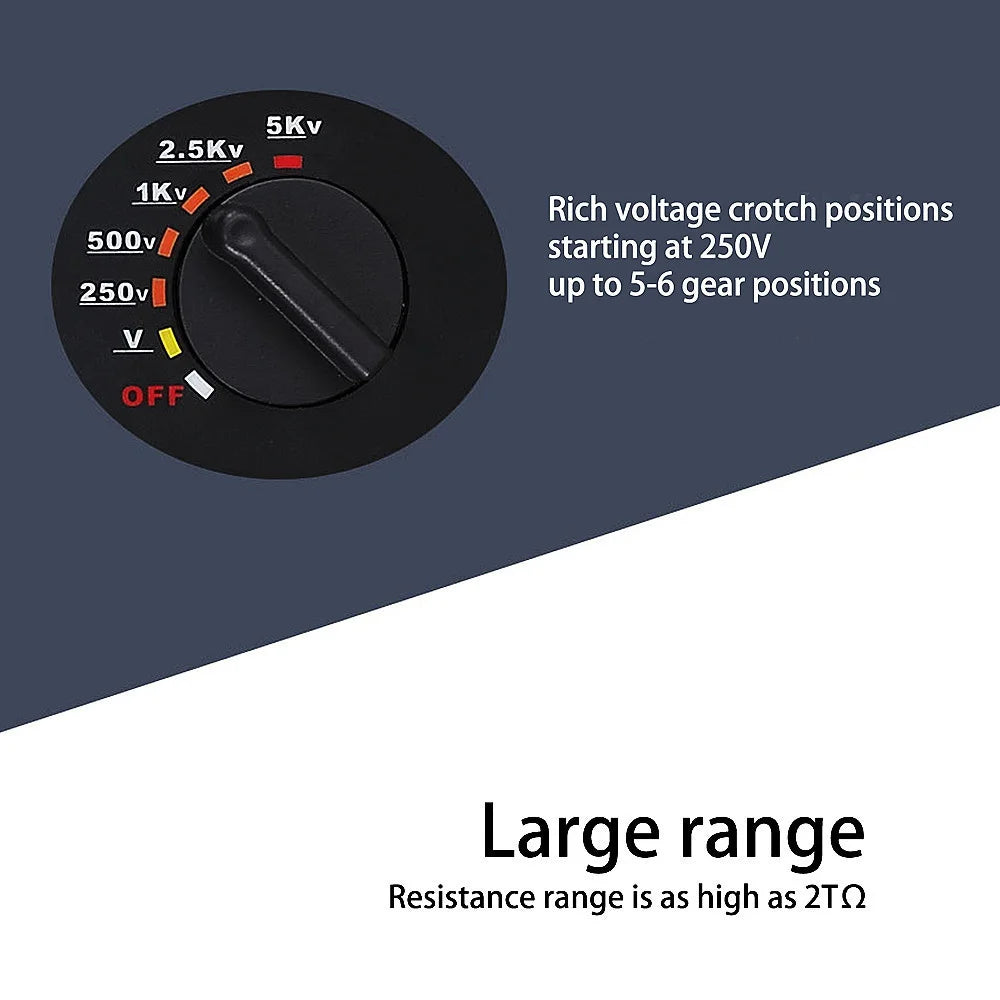

1.The combination of touch color screen, button and wave band knob, the function perfect can be directly tested with one button, the operation of inquiry

record is simple and convenient.

2.Rich display content which can display on same screen : various test modes and insulation resistance value, output voltage and the voltage of tested object,

current, test timing, test time, battery power, operation help, etc.

3.Double shell structure, firm and durable, protection level IP65.

4.Large capacity rechargeable lithium battery.

5.Voltage monitor function, automatically monitor live voltage of the tested object.

6.Test timer function, automatically record test time.

7.Automatic discharge function, after the test automatically release the charge of the tested object.

8.Store function, automatically store 1000 groups of real-time test data with test date, time and timing.

9.Upload function, the recorded data can be uploaded to the computer by USB communication cable for data statistical analysis.

Insulation Resistance Measurement Accuracy:

Technical Specifications:

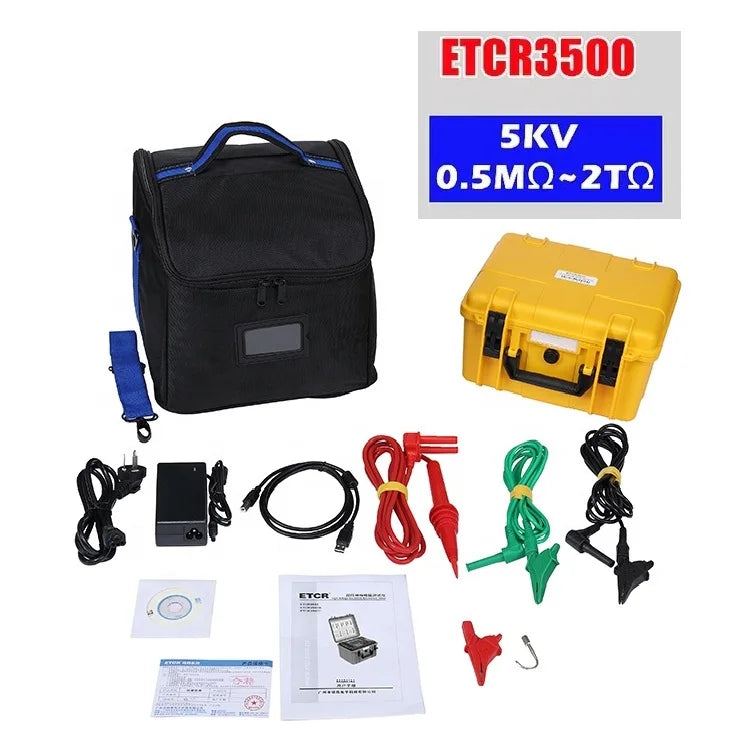

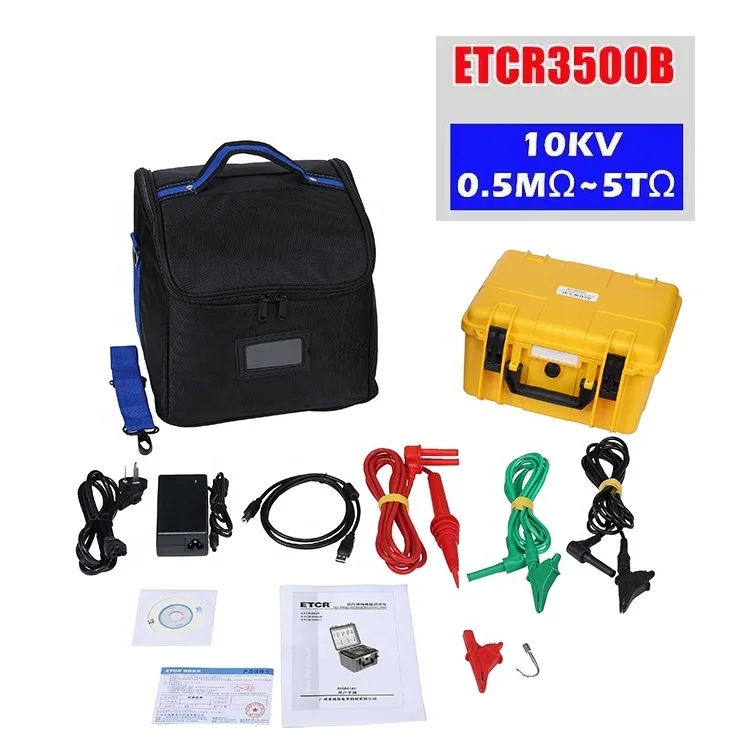

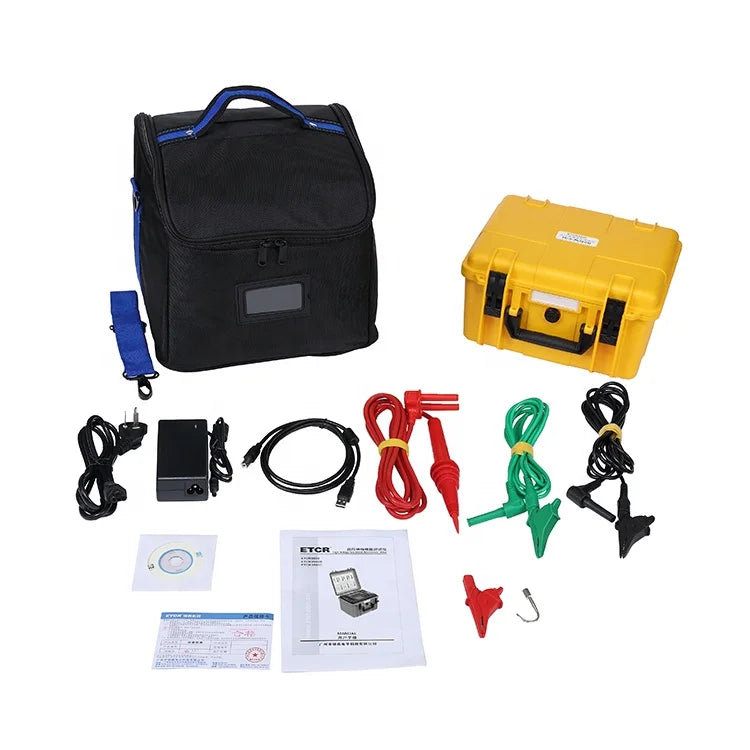

Package List:

1 x Insulation Resistance Tester

1 x Adapter

1 x USB Cable

2 x Alligator Test Line

1 x Test Pen

1 x Alligator Clip

1 x Hook

1 x CD

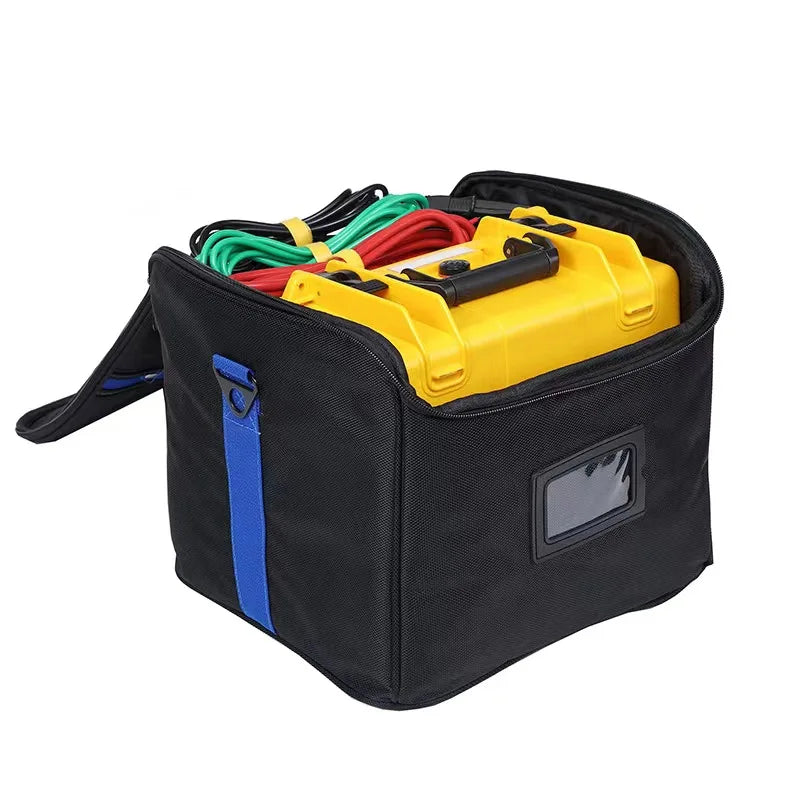

1 x Bag

1 x Instruction Manual

Picture Details:
