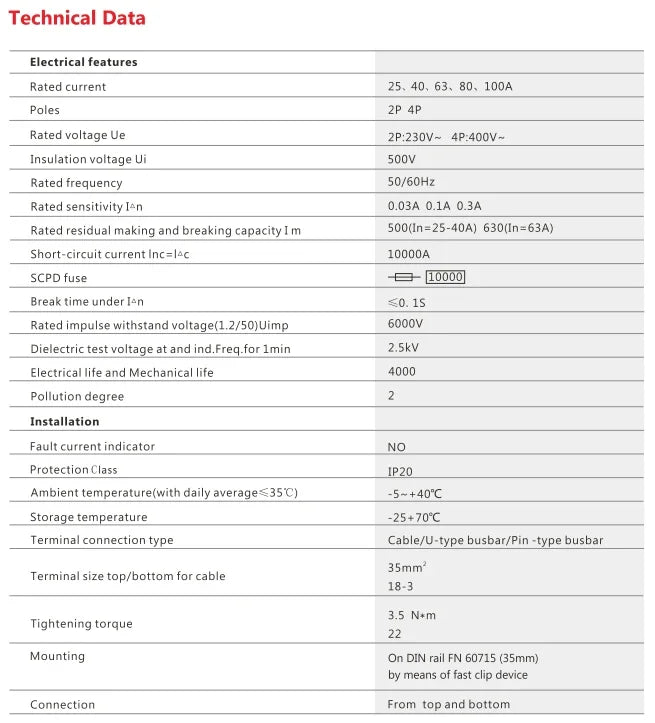

SPECIFICATIONS

Brand Name: GEYA

Breaking Capacity: 6KA

Certification: CE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: No

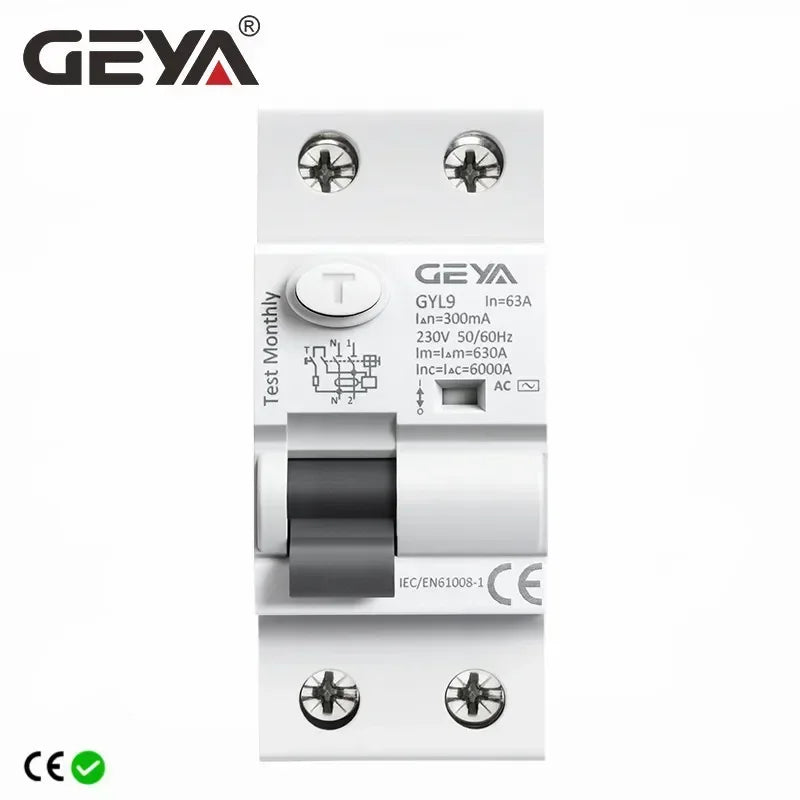

Model Number: GYL9 AC Type RCCB

Mounting: Din Rail

Origin: Mainland China

Poles: 2P 4P

Product Name: GYM9 AC RCCB/ELCB

Rated Current: 25A 40A 63A 100A

Rated Frequency: 50/60Hz

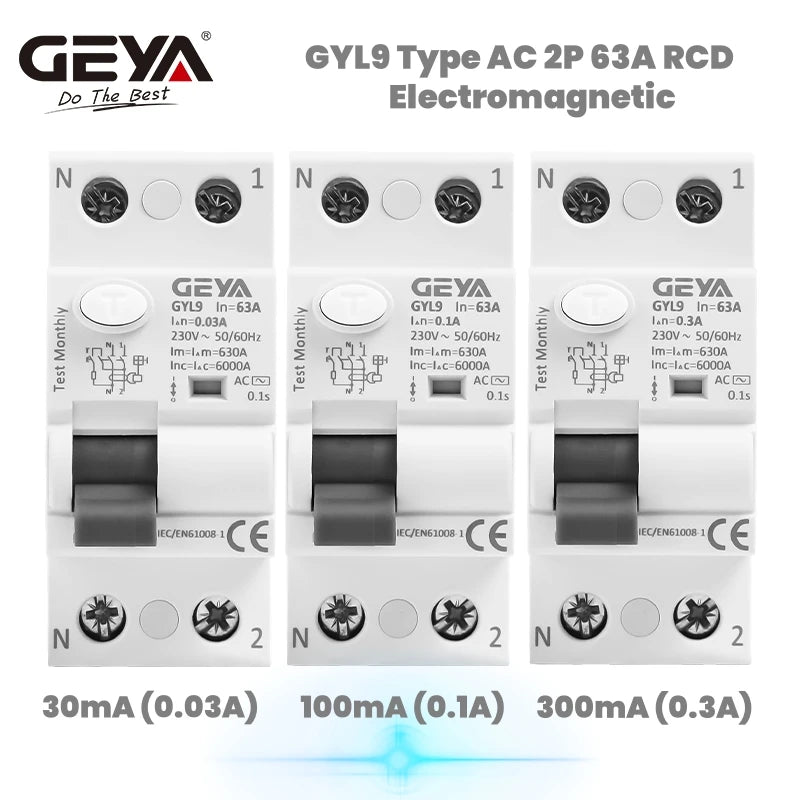

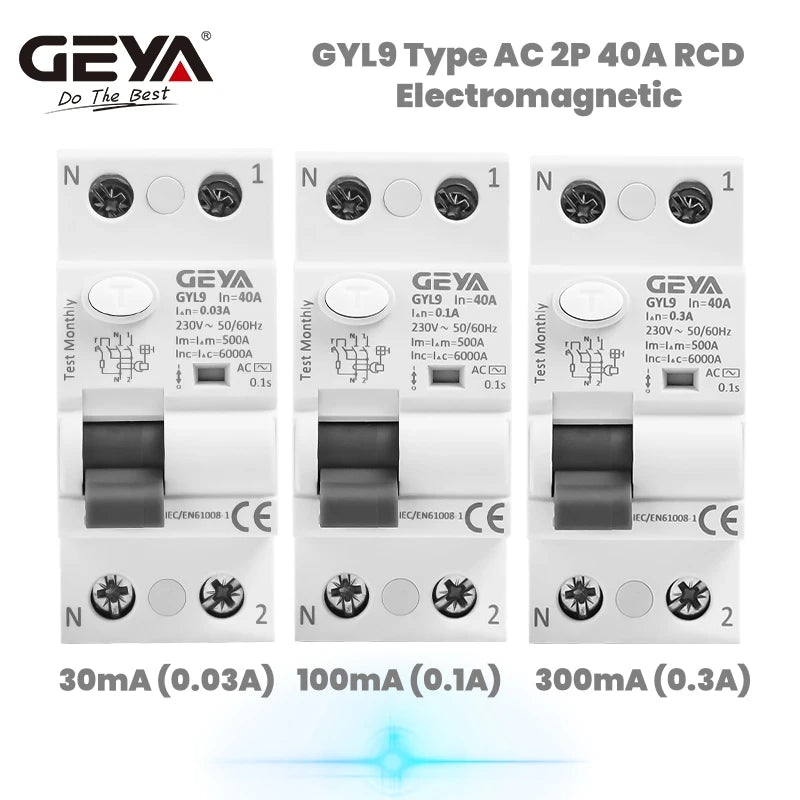

Rated Sensitivity: 30mA 100mA 300mA

Rated Voltage: 220/380V

Standard: IEC61008-1

Type: Earth Leakage,RCD

Voltage: AC230/400V

is_customized: Yes

semi_Choice: yes

General

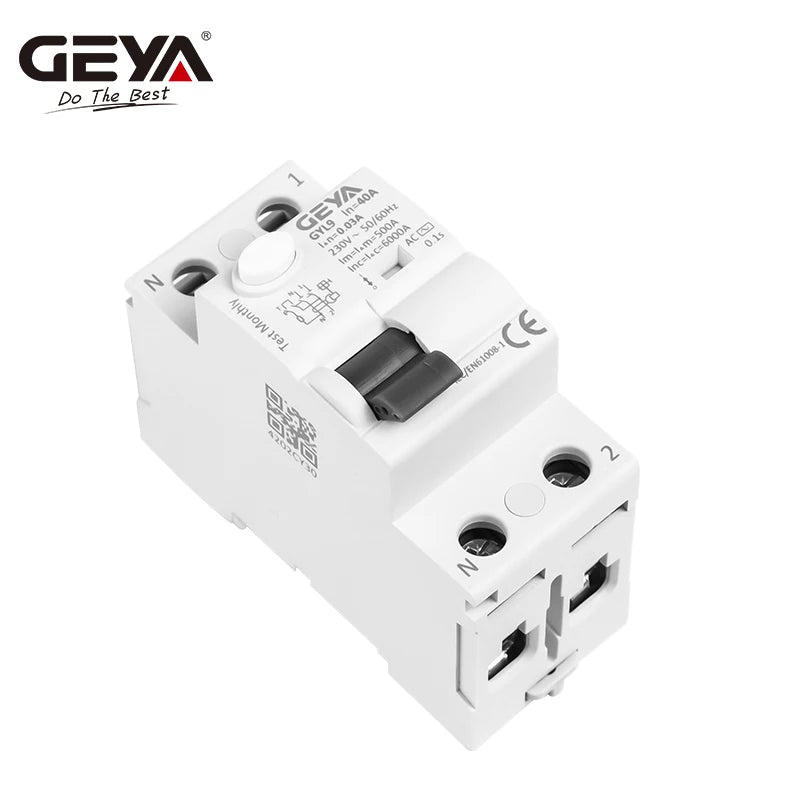

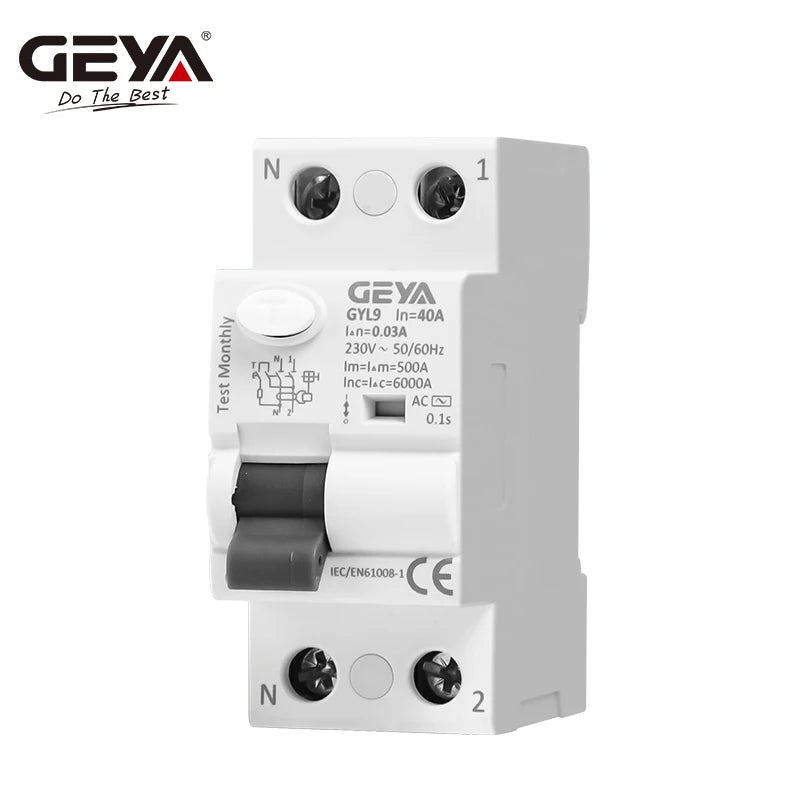

***It is AC type RCCB 2P 25A 40A 63A 100A 30mA/100mA/300mA***

GYL9 earth leakage circuit breaker is suitable to the circuit of AC 50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 100A.

when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments.

It also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.

 In complicance with IEC/EN61008-1.

 Bilateral busbar wiring capabilities to adapt to the wider use of premises.

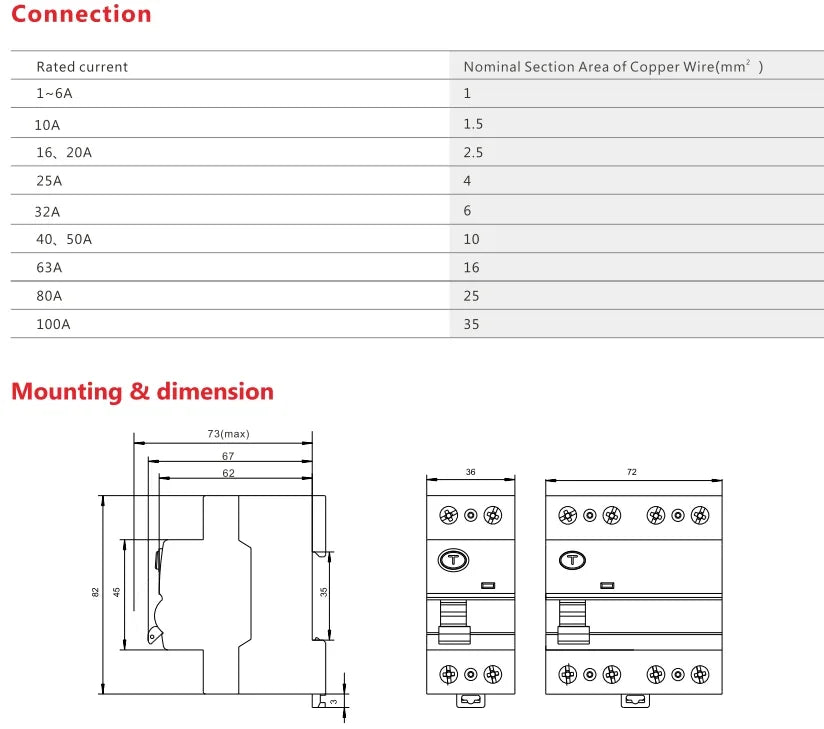

 Maximum connecting ability of 35mm , wiring torque 3.5N*m, applicable to a variety of installing equipment.

 Protection class:IP20.
